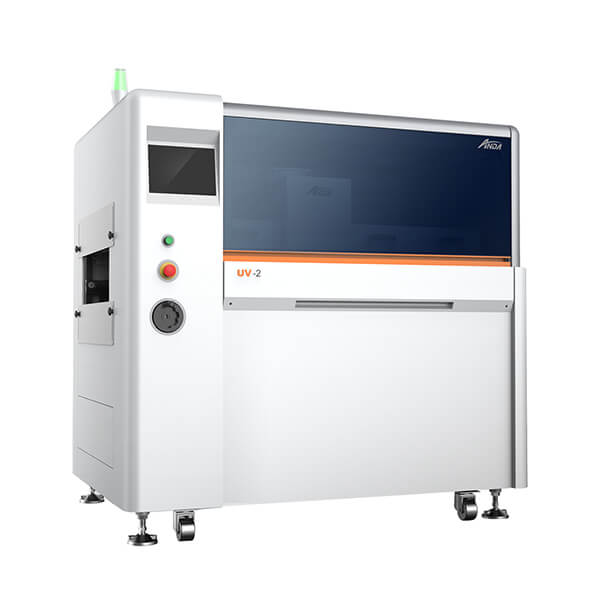

Anda UV Curing Oven Machine UV-2 LED

Board / Pallet Width：50-460 mm
Component Height：± 100 mm
Conveyor Height：900 ± 20 mm
Standard Footprint：L 1500 x W 1137 x H 1460 mm

BASIC INFO

Anda UV Curing Oven Machine UV-2 LED

Conformal Coatings, Adhesive Glues, and UV Curable Inks

The Anda UV curing oven series is the most powerful compact inline high intensity Ultraviolet (UV) curing oven system in the industry. It is capable of exceeding the maximum UV intensity requirements for curing virtually any UV curable product on the market today. In a class of its own, the system cost is also more affordable than rivaling products offered by competitors.

The inline UV curing oven series is available in LED for UVA LED curable coatings or Mercury Long-Arc for high intensity, rapid curing of UV curable coatings, adhesives, and inks. Closed-loop supply air ensures every substrate receives the same amount of cooling UV wavelength tailored to the ink, coating, or adhesive formulation.

The inline UV curing system was designed with enhanced safety protection to ensure operator protection from harmful UV radiation. The systems SMEMA communication and touch screen control interface integrates into new or existing factory automation lines or can also be used stand-alone. Pairs seamlessly with selective conformal coating spraying systems and does not interfere with wireless networks.

Standard Features

PLC touch screen control

Edge carrying, variable speed pin chain conveyor

Rail expansion compensation

SMEMA communication protocol

100 mm top and bottom side component clearance

Adjustable lamp intensity for long lamp life

Advanced variable frequency power technology ensures stable UV output and reduces energy consumption

Optional Features

UV LED for UVA LED curable coatings

UV Mercury Long-Arc

Dual lamps top cure only

Top and bottom simultaneous cure

Return conveyor beneath

UV-2 LED Specifications

Dual arrays of LED lamps positioned above the conveyor for curing UVA curable conformal coatings or adhesive glues. UVA LED curing is for the top-side or under-side of an assembly if flipped/inverted.

Transmission System
Board / Pallet Width	50-460 mm (1.96″ -18.11″)
Component Height	± 100 mm (± 3.93″)
Conveyor Height	900 ± 20 mm (35.43″ ± 0.79″)
Conveyor Construction	Aluminum alloy rail + stainless steel chain
Rail Chain	Stainless steel chain with 5 mm extended pin
Process Flow	L to R (Standard),
Process Flow	R to L (Optional)
Conveyor Speed (XY)	0.5 – 5 m/min
Convery Width Adjustment	Manual
Maximum Load	4 kg (Standard), 10 kg (Optional)
Facility
Standard Footprint	L 1500 x W 1137 x H 1460 mm
Standard Footprint	(L 59.06″ x W 44.76″ x H 57.48″)
Weight	460 kg
Power	Designed to operate at 380 VAC, 3 Phase, 20kVA
Power	When needed, available optional transformer for input voltages 208V or 480V
Rated Power	7.0 kW
Exhaust	12 m3/min at max power
Ventilation	150 mm exhaust pipe connection
Lamp Configuration	Dual LED UVA Set lamps above conveyor
Interface
Controller	PLC and touch screen
Exhaust Requirement	11.33 m³/min (400 CFM)
Communication Protocols	SMEMA & IPC-CFX
LED Lamp Ultraviolet
UVA Irradiation	up to 500 mW/cm²
UVA Wavelength	365 nm (Standard), 395 nm (Optional)
