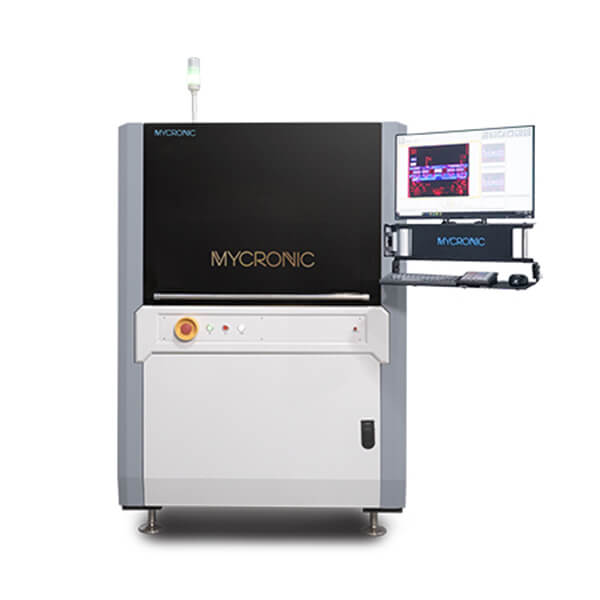

Axxon Mycronic i70X series Conformal coating inspection machine(AOI)

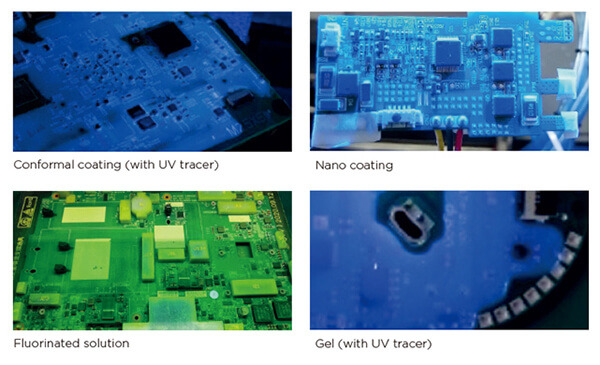

The system features advanced scanning technology with multi-color LED illumination resulting in parallax-free images. The optics, along with an impressive scanning distance of up to 100mm results in shadow free inspection of products with tall geometries. The i70X can 100% inspect next to a connector no matter if it is at the edge of a product or in the center of a PCB. Complete, high resolution scans with the largest model take less than 25s. Defects such as cracks, voids and contamination can easily be detected. With the optional thickness measurement software a color map can be displayed, offering a quick check that coating is within specification.
Product Features
- High-resolution color scanner: real 24-bit color, 20,400 x 14,040 Pixels per small scan
- Multi-color LED lighting
- Achromatic lens for parallax free display
Easy programming: Fast and intuitive software Simple user interface: Straight forward programming wizard and easy to understand interface
Fast scanning speed: Time for a full scan and processing is < 25s, and results are immediately available
Supports MES traceability: Barcodes can be read on each PCB with optional 2D barcode option. The results and detail can be connected to your MES for product traceability
APPLIED INDUSTRIES
• Automotive • Consumer • Military • Medical

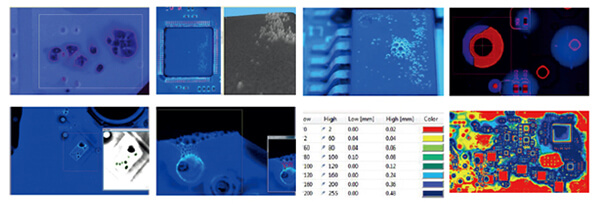

Process defect detection: defects such as cracks, voids, overspray, contamination, splashes, orange peel, bubbles and thickness measurement.
- Detection time: 6-25s
- Resolution: 600-1200dpi
- Multi-light source system: red light, white light, UV light
Specifications
BASIC PARAMETERS
i70XS
i70XS-D
i70XL
i70XL-D
Power supply
AC 220V,2.2kW
Air pressure requirement
0.4-0.8MPA
Exhaust requirements
Exhaust port diameter 200mm
Dimension
1,150x1,350x16,30mm
1,150x1,350x1,630mm
1,420x1,550x1,780mm
1,420x1,550x1,780mm
Weight
600kg
700kg
750kg
800kg
System certification
CE
IPC parameter
i7, 32GB memory, 6T hard disk,Win10, 24 inch display
Communication
SMEMA
PLATFORM PARAMETERS
Conveyor payload
5kg (10kg optional)
Conveyor height
900±30mm
Conveyor speed
2-15m/min
Conveyor direction
L-R(Standard); R-L(Optional)
Conveyor width range
50-500mm
Conveyor width adjust
Automatic
Conveyor transport type
Stainless steel chain
Top clearance
50mm
50mm
100mm
100mm
Bottom clearance
100mm
50mm
100mm
100mm
Board thickness
≥ 1mm (Rigid product)
Board edge
5mm
Return conveyor height
400±30mm
AOI PARAMETERS
Inspection type
Top
Top Bottom
Top
Top Bottom
Max inspection area(XxY)
400x300mm
400x300mm
530x420mm
530x420mm
Resolution
600-1200dpi, 42um-21um
Depth of field
9mm
Display size
24 inches
Inspection light source type
Red light, white light, UV light
