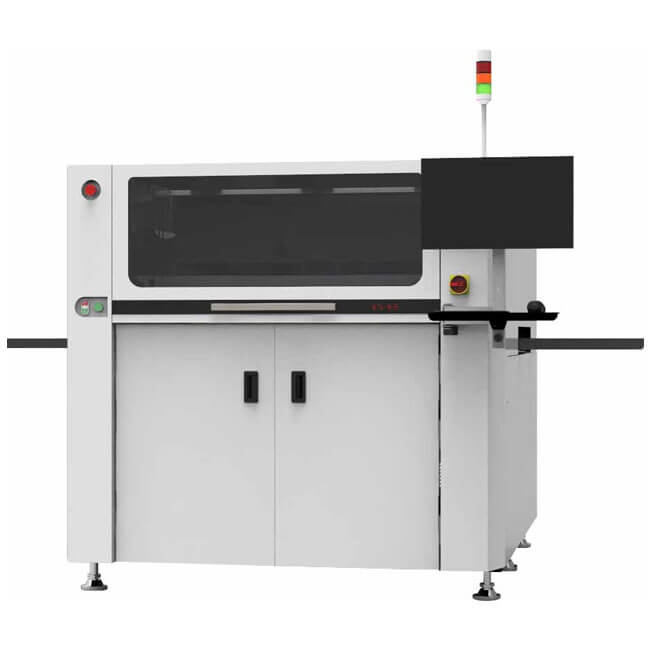

ESE US-LX5 and US-LX1 and US-LX3 Solder paste printer

PCB Size ：100㎜ x 80㎜ ~1500㎜ x 650㎜
PCB Thickness： 0.3㎜ to 6㎜
Alignment Accuracy ：±12.5 ㎛ @ 3 sigma
Cycle Time： 45sec / 1000mm PCB

BASIC INFO

ESE US-LX5 and US-LX1 and US-LX3 Solder paste printer

LED Screen Printer from ESE Co. Ltd Korea, masters of large format SMT screen printers have now developed an LED printer.

With a very strong technological background and R & D team they have become well known for their large board SMT Screen printers of up to 850 x 500mm. In 2013 they introduced a very large board SMT Screen printer, the US-LX5 showing off their technical capabilities. This Large Board SMT Screen Printer can handle boards up to 1500mm x 650mm in size. This machine is especially capable of LED Lighting Bar products as well as being flexible enough to handle the smaller PCB's making it a very flexible and cost effective solution for any serious CEM.

Qualified professional large board up to 1500mm

12 over enhanced standard program integrated

Up to 10kgs and 10mm Thickness (optional) available

3 stages conveyor system and special vacuum clamp kit includes

Effective X direction Printing and Cleaning

	US-LX1	US-LX3	US-LX5
	US-LX1	US-LX3	US-LX5
Taille carte	100mm x 80mm -	100mm x 80mm -	100mm x 100mm -
Taille carte	1000mm x 650mm	1300mm x 650mm	1500mm x 650mm
Taille de pochoir	736mm, 980mm, 1300mm, 800mm	736mm, 980mm, 1500mm, 800mm	736mm, 980mm, 1800mm, 800mm
Temps de cycle	35 sec / 1000mm PCB	40 sec / 1000mm PCB	45 sec / 1000mm PCB
Précision d'alignement	±12.5 um @ 3 sigma	±12.5 um @ 3 sigma	±12.5 um @ 3 sigma
Répétabilité d'impression	±25 um @ 3 sigma, Cpk ≥1.33	±25 um @ 3 sigma, Cpk ≥1.33	±25 um @ 3 sigma, Cpk ≥1.33
