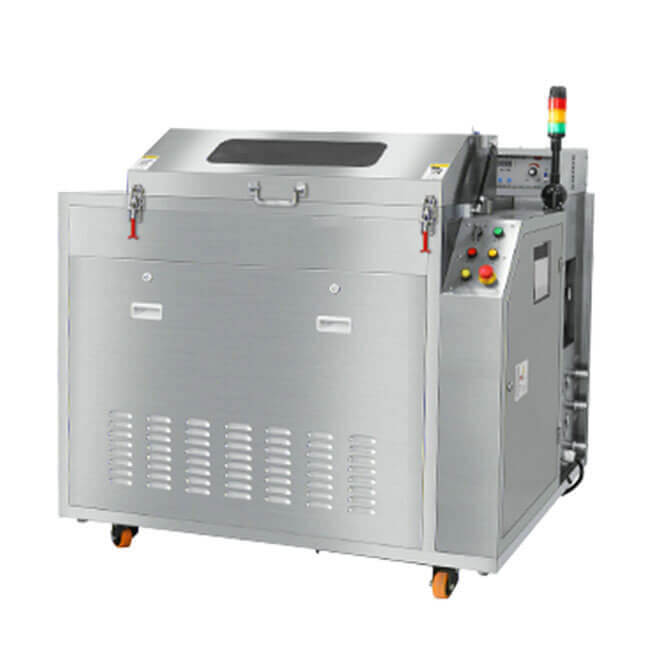

Fully automatic Scraper cleaning machine QT-220
SMT solder paste printing scraper automatic cleaning machine. Cleaning with water-based cleaning solution, rinsing with DI water, automatic cleaning, rinsing, hot air drying and other processes in one machine.
1. The overall use of SUSU304 stainless steel body, anti-acid and alkali corrosion, durable.
2. It is suitable for scrapers of all automatic solder paste printing machines currently on the market.
3. Ultrasonic vibration + spray jetting two cleaning methods, more thorough cleaning.
4. Rotary scraper cleaning system, 6 scrapers are placed at a time, and the maximum cleaning length is 900mm.
5. Jog rotation, clamp-type clamping method, easy to pick and place the scraper.
6. One-button operation, cleaning, rinsing and drying are automatically completed at one time according to the set procedure.
7. The cleaning room is equipped with a visual window, and the cleaning process is clear at a glance.
8. Color touch screen, PLC control, run according to the program, cleaning parameters can be set as required.
9. Cleaning and rinsing double-pump dual-system, independent liquid tanks and independent pipelines.
10. Cleaning and rinsing real-time filtration system, the tin beads after cleaning will no longer return to the surface of the scraper.
11. Cleaning liquid and rinsing water are recycled to reduce emissions and meet environmental protection requirements.
12. Equipped with a diaphragm pump to realize fast liquid addition and liquid discharge.
Parameter
Keyword
name
QT-220
Suitable for scraper size
L600mm
Number of scrapers to clean at one time
6PCS
Number of scrapers to clean at one time
80Lx2
Cleaning time
5~10min
Rinsing time
1~2min
Drying time
5~20min
Cleaning solution
Water-based stencil cleaning fluid
Rinse solution
DI Water
Drying method
High pressure hot air drying
Washing/rinsing filtration
100um filter + 1um filter element
Ultrasonic power
1.2KW
Cleaning, rinsing pump power
1.1KW+1.1KW
Power requirements
AC380V 3P,50/60HZ，28KW
Air supply requirements
0.5~0.7Mpa,200~400L/Min
Machine size
L1400 x W1300 x H1300(mm)
Machine weight
500KG
