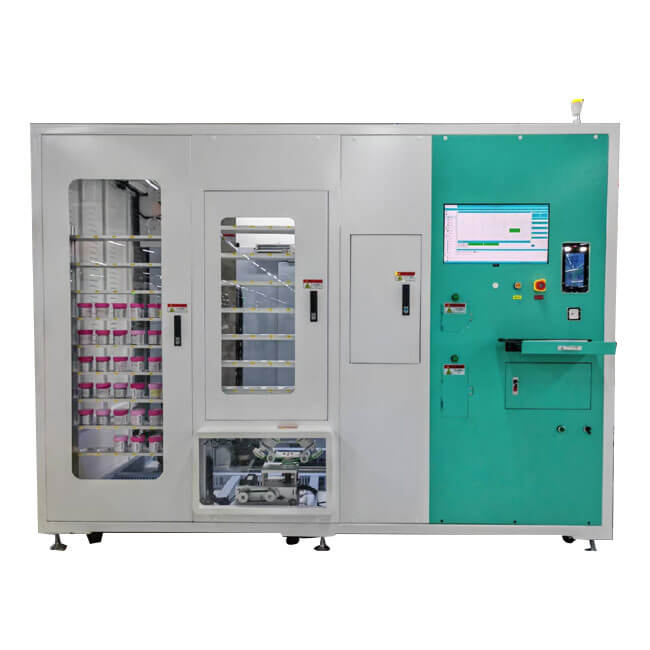

Intelligent solder paste storage cabinet - Automatic solder paste cabinet

Application and advantages of intelligent solder paste management cabinet;
1. Time and information management traceability
Main interface: Time/reservation personnel rights/work order data
Storage: Temperature/time/cell warning
Cold storage: Temperature management/time management
Outbound: Time/applicant/work order information
Warehousing: Time/applicant/work order information
Return temperature: start and end time/temperature time management, stirring: stirring (defoaming) time/taking time
2. Time Management:
First in, first out: by production date/storage time
Ø Timeout management: return temperature timeout, automatic refrigeration
Ø Solder paste red glue expired automatically scrapped
Ø Code elimination management: Code elimination management is carried out when the solder paste red glue is weighed to 0
Ø Mixing time can be freely set 0-600RPM
Ø Reservation access :MES or personnel reservation
Ø Working mode: daily working mode, holiday booking mode, MES mode

3. Information traceability:
Ø According to one-dimensional code or two-dimensional code information to obtain factory word, product batch, product production time information... And traceability and preservation
Ø Report generation: real-time temperature information, alarm operation information, production history need information saved into report format
Ø Usage data and user information are automatically saved
4. Red glue function in and out of tin paste
Ø The feed rack compartment has a separate sensor for induction, which can be continuously fed (the number can be expanded, the principle uses Panasonic SMTtary non-stop refuelling principle)
Ø The discharge port has a sliding table for sending to the place after the light to remind
Ø Discharge can be connected to AGV
Ø Visual correction of upper and lower silo cell coordinates
5. Storage function
Ø Variable frequency air conditioning, temperature difference ±0.5-1 degrees, to ensure the solder paste red glue quality
Ø Housing with 50-60 mm thickness and 850 flow cyclopentane
High pressure integrated foam structure temperature more stable
Ø The use of cold air circulation system (principle using reflow hot air
Motor principle)
Meet the unused solder paste red glue weighing after the second storage
Ø Less than the number of safety compartment after the reminder function
Ø Storage quantity type can be classified
Ø Visual correction storage cell coordinates
6. Return temperature function
Ø The number of return temperature area is compatible with 60-260 bottles (according to the actual situation of customers)
Ø Lower than safety production quantity reminder
Ø Reservation temperature return function
Ø Return temperature timeout automatically return to the refrigerator
Ø The return temperature and the cell to be exported can be set freely
Ø Visual correction back temperature cell coordinates
7. Mixing function
Ø Single bottle or 2 bottles stir
øMeet rotation and revolution mixing
Ø Stirring defoaming time and speed can be set
Ø Visual correction stir 1/2 cell coordinates
