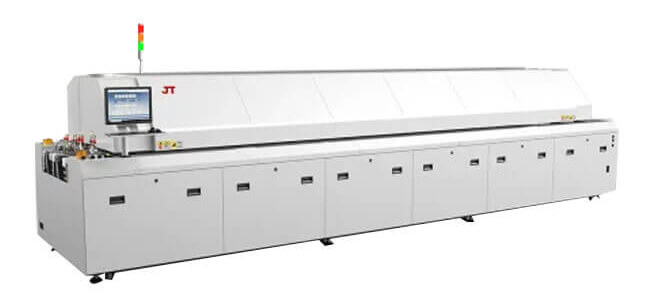

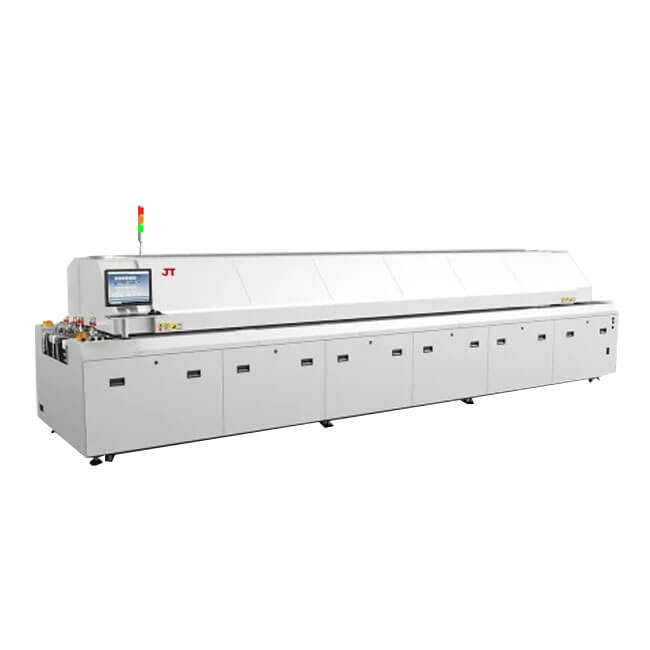

JT TFO1000D lead free dual track reflow oven

NO.of heating zones：Top 10, Bottom 10
NO.of cooling zones：Top 2 Cooling Zones
Max. Width of PCB：270mm×2（Single Rail 50-490mm ）
Heated Length：3890mm

BASIC INFO

JT TFO1000D lead free dual track reflow oven

TFO Series Lead-Free Hot Air Reflow Oven

● Rail Conveyor System：

The rail track is dealt with a hardening process to make it more reliable.

● Dual-Rail Conveyor System：

The dual rail system can improve productivity efficiently and save energy and production cost, Strengthen the mail hanging bracket to avoid rail deformation.

● 95% material of reflow oven can be recycled;
● The patented optimized structure design can minimize the influence of the chamber to environmental temperature;
● The automatic flux collection system is easy for maintenance.

Description

Model No.	TFO-1000D
Specification
Heated Length	3890mm
Dimensions (L×W×H)	6000x1660x1530mm
Net Weight	Approx.2950KG
Exhaust Volume	10 m³/min×2 Ducts
Supply Power	AC; 380V 3Φ5w 50/60HZ; （Option: 220V 50/60HZ）
Power	Starting:38KW
Power	Operating: 11KW
Heat up Time	Approx.30min
Temp. Range	Room temperature -300°C
Max. Width of PCB	270mm×2（Single Rail 50-490mm ）
PCB Top Height	Top 30mm/Bottom 25mm
Conveyor Direction	Left to Right（ Option:Right to Left ）
Fixed Rail Side	1st & 4rd Rails Fixed（ Option:1st&3th Rails Fixed)
Conveyor Height	900±20mm
Conveyor Speed Range	300-2000mm/min
Data Storage	Various parameters and storable
Abnormal Alarm	Abnormal Temp. (Over/under-heat.) Sound & Light Alarm
Device Layout
NO.of heating zones	Top 10, Bottom 10
NO.of cooling zones	Top 2 Cooling Zones
Control System	WIN10 + Computer + PLC
Temp. Control Method	PID+SSR
Thermocouple Wire	4 wires
Conveyor System	Dual-Rail + Mesh
Conveyor Control Mode	Inverter + Import Conveyor Motor
Chain Structure	Single side link avoid block
Width Adjustment	Electric adjustable
Cover Open	Electric open for easy maintenance.
UPS Power	Backup power supply to ensure PCB production finish normally.
Cooling System	Forced Air Cooling
