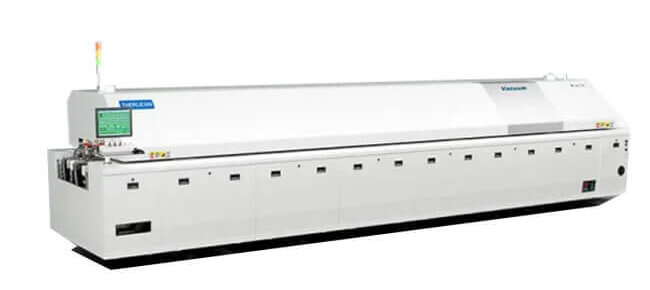

JT TRV-1200D-N SMT Dual-lane Nitrogen Reflow Oven
TRV Series Vacuum Assisted Reflow Oven
● Independent temperature control zone, suitable for different temperature profile;
● Solve the problem of bubble & void, <1% void area can be achieved;
● High efficient vacuum pump unit equipped for fast down time;
● 3- section conveyor : Heating zone ,vacuum unit and cooling zone , adjustable individually;
● High production throughput, cycle time 40-60sec, average;
● Equipped with high efficient flux collection system.
● High efficiency、No voids、 Low maintenance cost: Equipped with vacuum unit to solve the problem of void, bubble, etc. Voids area can reach < 1% by the vacuum pressure 10-5mbar.
● High accurate vacuum level and temperature profile: Temperature of each zone can be adjusted individually. Pressure under 10mbar still can meet TI≤90S, TP≤240°C. Infrared heating equipped in vacuum unit to meet high throughput settings.
Description
MODEL
TRV-1200D-N
GENERAL
Outside Dimension(L*W*H)
7050 x 1660 x 1530mm
Standard Color
Computer Grey
Weight
Approx. 3500KG
Number Of Heating Zones
Up 12(1IR) / Bottom 11
Length Of Heating Zones
4640mm（With Vacuum Area）
Number Of Cooling Zones
Up 3 / Bottom 3 (Cool Air Conversion)
Exhaust Volume
10 m³ / min x 2 (Exhausts)
Electric Supply Required
3 phase, 380V 50/60Hz (Optional: 3 phase, 220V 50/60Hz)
Electric Power Required
105KW
Power For Warm Up
44KW
Power Consumption
13KW
Vacuum Level
5 mbar～10 mbar
Warming Time
About Approx. 25 minute
Temp. Setting Range
Room Temp. — 300℃
Temperature Control Method
PID Close Loop Control + SSR Driving
Temperature Control Precision
± 1.0℃
Temperature Deviation on PCB
± 1.5℃ (by JT Board Test Standard)
Heating Element
Especial Heating elements For Long Life
Commutated Element
Aluminium Alloy Plate
Data Storage
Process Data and Status Storage
Abnormal Alarm
Abnormal Temperature (Extra-high / Extra-low Temp.)
Board Dropped Alarm
Tower Light: Yellow–Warming; Green-Normal; Red-Abnormal
Conveyor
chain conveyor
Rail Structure
Subsection Integrated Type
Rang Width Of PCB
Single Lane min70mm-max430mm；Dual Lane min70mm-max250mm
Rang Length Of PCB
min150mm-max300mm
chiller
Standard
Flux Collection System
Standard
N2 Control Device
Standard
Oxygen Analyser
Standard
The above contents are subject to change without further notice!
