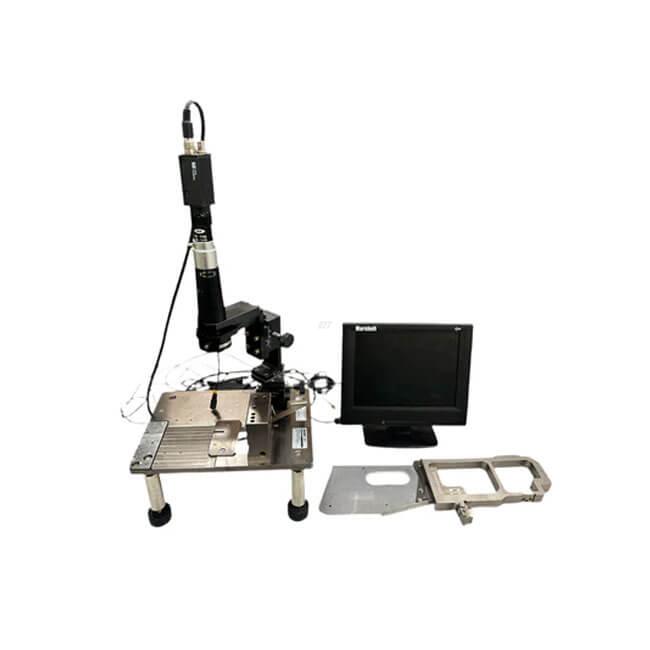

Juki Feeder Calibration Station

BASIC INFO

Compact overall structure, simple operation and optimized functions. Equipped with high-precision gears to ensure positional stability and greatly improve work efficiency.
Precise detection: The pick-up position, height and pressure bar height can all be accurately measured, enabling better control over product quality.
Adopts a 12-inch color LED display with LED lighting and a 50× magnification CCD camera, making the structure more compact and aesthetically pleasing. It effectively reduces eye fatigue and improves operation quality.
User-friendly operation, with the ability to simulate a chip mounter and automatically and continuously observe the pick-up position. This allows clearer monitoring of the continuous operation quality of the FEEDER, thereby effectively controlling the component rejection rate.
Compatible with various machine models including FUJI CP6, YAMAHA, SANYO, PANASONIC, UNIVERSAL, SONY, JUKI, SAMSUNG, etc.

Functions & Features

Precise X-Y-Z axis adjustment;
Directly adjustable axis camera;
Built-in 220V DC power supply;
Cross cursor with scales;
Automatic and stepping functions;
Ultra-bright LED display;
Precise feeder control fixture;
Precise feeder control tapes in 8×2mm/12×4mm/16×8mm and 24×8mm specifications.
