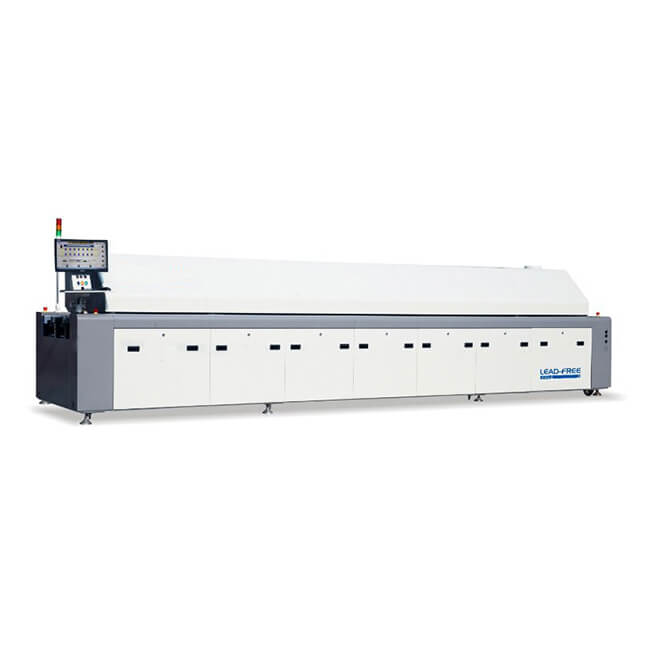

L-1000 10 heating zone SMT lead-free Reflow Oven
►The Windows operating system offers a simple interface that allows for easy on-screen switching between Chinese and English.
►The Intelligent Diagnosis System features functions such as Trouble Reminder, Alarm List-Out, and Report Saving.
►All production data is automatically backed up, facilitating ISO 9000 management.
►An extended cooling zone with top 4/bottom 3 zones ensures rapid cooling and a low outlet temperature.
►The main frame design has been enhanced and the rails have been segmented to prevent deformation and eliminate issues such as PCBs getting stuck or dropping.
►A brand new width adjustment structure ensures that the rails remain parallel from inlet to outlet, preventing misalignment.
►A multi-layer temperature protection design keeps the shell surface temperature low, reducing the working environment temperature.
►A double-layer temperature protection function safeguards the machine from damage due to abnormal temperatures.
►A new-type exhaust gas recovery structure reduces energy consumption and improves flux recycling.
►High thermal transmission facilitates and enhances the soldering process for large and complex products.
►Dual lanes with dual speed, priced as a single machine, double productivity and save 60% energy.
►The furnace features a fully enclosed design to prevent nitrogen loss, with the lowest nitrogen content being 150ppm.
Specification
Item
L-1000/L-1000N
Dimension
6300*1510*1580mm
Heating zone
top10/bottom10
Length of heating zone
3110mm
Length of cooling zone
1010mm
No.of cooling zone
air oven top4/bottom3;N2 oven top3/botom3
Extraction
10m³/min*2
Max.PCB size
400mm(option:460mm) |610mm(option:686mm)
Conveyor direction
L→R(option R→L)
Fixed rail side
Front rail fixed(option:rear rail fixed)
Conveyor height
900±20mm
Component height
PCB top30mm/bottom25mm
Conveyor speed
300-2000mm/min
Chain Spec
Stainless Strand Chain
Rail Width Adjust Mode
By Manual+By Motor+By Auto
Rail Structure
Subsection Interated Type
Power Supply
380V 50/60HZ (220V 50/60HZ)subject to technical agreement)
Total Power
80KW/83KW
Startup Power
32KW/34KW
Normal Power Consumption
10KW/11KW
Warming Time
25min
Temperature Setting Range
Room Temperature----350℃
Temperature Control Precision
±1℃
Temperature Control Type
PID Close Loop Control+SSR Driven
Temperature Deviation on PCB
+1.5℃
Max.Temp.Difference between
Preheat Zone and Solder Zone
80℃
Max.Temp.Difference between
Preheat Zones
40℃
Max.Temp.Difference between
Solder Zones
40℃
Data Storage
Process Data and Status Storage Unlimited
Alarm Display
By Sound and Light
FLUX Servce Hints
Software Hints Service Period
N2 Consumption (Standard Machine)
18-20m³/hr 300-1000PPM
N2 Consumption (Extended Machine)
25-30m³/hr 500-1000PPM
