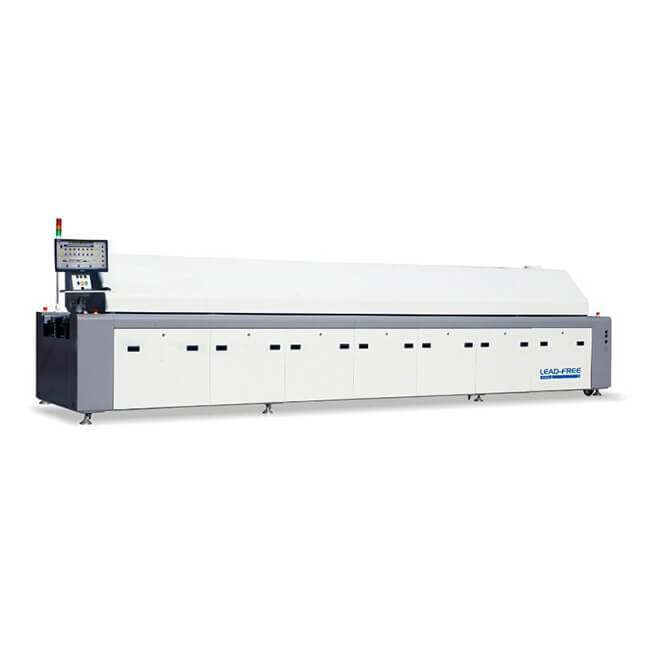

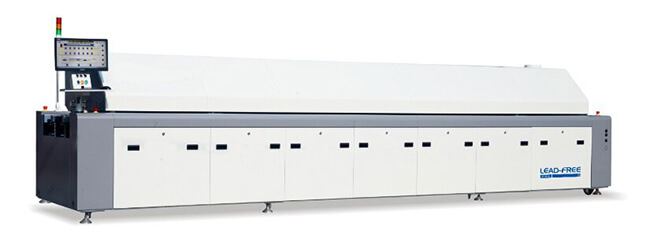

L-1200D 12 heating zone SMT Dual-lane lead-free Reflow Oven

Heating zone: top12/bottom12
Length of heating zone: 3110mm
No.of cooling zone: air oven top4/bottom3;N2 oven top3/botom3
Max.PCB size: 610mm(option:686mm)

BASIC INFO

L-1200D 12 heating zone SMT Dual-lane lead-free Reflow Oven

►The Windows operating system offers a simple interface that allows for easy on-screen switching between Chinese and English.

►The Intelligent Diagnosis System features functions such as Trouble Reminder, Alarm List-Out, and Report Saving.

►All production data is automatically backed up, facilitating ISO 9000 management.

►An extended cooling zone with top 4/bottom 3 zones ensures rapid cooling and a low outlet temperature.

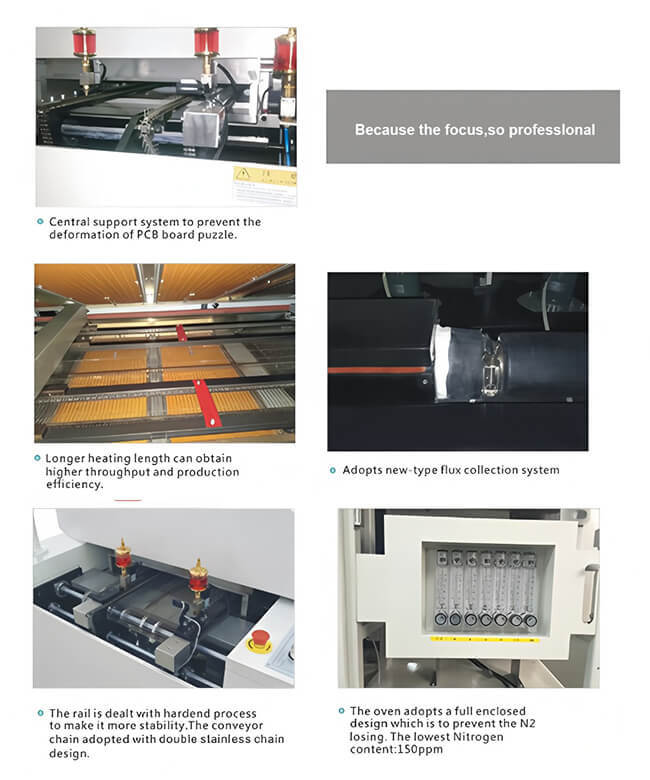

►The main frame design has been enhanced and the rails have been segmented to prevent deformation and eliminate issues such as PCBs getting stuck or dropping.

►A brand new width adjustment structure ensures that the rails remain parallel from inlet to outlet, preventing misalignment.

►A multi-layer temperature protection design keeps the shell surface temperature low, reducing the working environment temperature.

►A double-layer temperature protection function safeguards the machine from damage due to abnormal temperatures.

►A new-type exhaust gas recovery structure reduces energy consumption and improves flux recycling.

►High thermal transmission facilitates and enhances the soldering process for large and complex products.

►Dual lanes with dual speed, priced as a single machine, double productivity and save 60% energy.

►The furnace features a fully enclosed design to prevent nitrogen loss, with the lowest nitrogen content being 150ppm.

Specification
Item	ER-1203D/ER-1203D-N
Dimension	705017401580mm
Heating zone	top12/bottom12
Length of heating zone	3110mm
Length of cooling zone	1010mm
No.of cooling zone	air oven top4/bottom3;N2 oven top3/botom3
Extraction	10m³/min*2
Max.PCB size	610mm(option:686mm)
Conveyor direction	L→R(option R→L)
Fixed rail side	Front rail fixed(option:rear rail fixed)
Conveyor height	900±20mm
Component height	PCB top30mm/bottom25mm
Conveyor speed	300-2000mm/min
Chain Spec	Stainless Strand Chain
Rail Width Adjust Mode	By Manual+By Motor+By Auto
Rail Structure	Subsection Interated Type
Power Supply	380V 50/60HZ (220V 50/60HZ)subject to technical agreement)
Total Power	101KW/104KW
Startup Power	40KW/42KW
Normal Power Consumption	11.5KW/12.5KW
Warming Time	30min
Temperature Setting Range	Room Temperature----350℃
Temperature Control Precision	±1℃
Temperature Control Type	PID Close Loop Control+SSR Driven
Temperature Deviation on PCB	+1.5℃
Max.Temp.Difference between Preheat Zone and Solder Zone	80℃
Max.Temp.Difference between Preheat Zones	40℃
Max.Temp.Difference between Solder Zones	40℃
Data Storage	Process Data and Status Storage Unlimited
Alarm Display	By Sound and Light
FLUX Servce Hints	Software Hints Service Period
N2 Consumption (Standard Machine)	18-20m³/hr 300-1000PPM
N2 Consumption (Extended Machine)	25-30m³/hr 500-1000PPM
