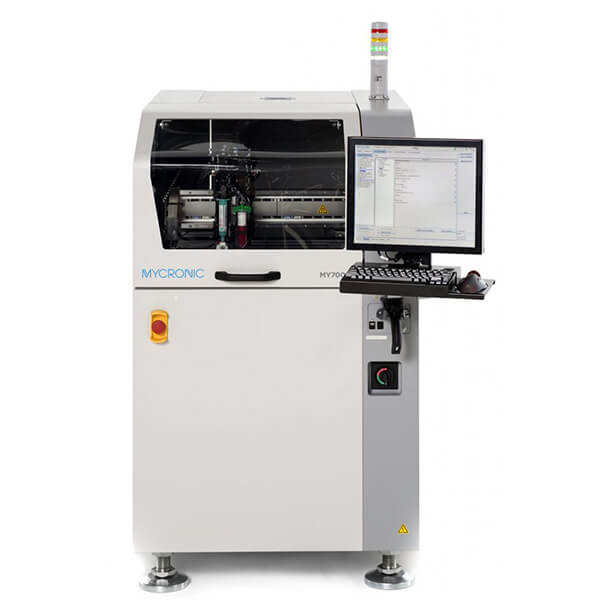

Mycronic MY700 Jet Printer and Dispenser
As quality requirements increase, batch sizes shrink and component complexity grows, jet printing of solder paste has become a reliable alternative to screen printing for manufacturers concerned about PCB defects.
Mycronic jet printing technology makes it possible to dispense solder paste for the most challenging circuit boards and components, with micrometer accuracy, maximum speed and perfect quality solder joints.
Fully software-driven and stencil-free, with complete solder paste volume control, the MY700 Jet Printer ensures consistently perfect quality solder joints. From pin-in-paste to package-on-package, flexible substrates and board cavities, the MY700 handles all these jobs and more with total control of solder paste deposit size, volume, shape and position.
1.dual heads for productivity
2.dual lanes for smart board handling and buffering
3.high-speed, high-accuracy dispensing
4.solder paste and a wide range assembly fluids
SPECIFICATIONS
Machine-Printing frequency: 1.080.000 DPH
Machine-Platform: Gantry XY, 3g DSP
Machine-Weight: 1.600 kg 3.530 lbs
Machine-Media: Solder pastes SMT adhesive
PCB-Max board size: 510 x 580 mm**
PCB-Max -Min dot size: 215 um*
PCB-Max -Max dot size: 600 um*
PCB-Max -Board types: Rigid Flexible Stretchable
Component-Components: BGA QFN QFP POP 3D cavities Lead frame Pre-mounted Pin-in-Paste Broadband Flat chips
Efficient Technology Co.,Ltd provide a full SMT assembly line solutions, including SMT Production Line, SMT Pick and place machine, SMT Stencil Printer, SMT Inspection equipment, SMT Weling equipment, SMT Intelligent Storage System, SMT Automatic Insertion Machine, SMT Peripheral Equipment, SMT Feeders, SMT Nozzles, SMT Spare Parts etc any kind SMT machines you may need, please contact us for more information: WeChat: +8613714564591 Email: sales@efsmt.com
FAQ:
Q: What we can do for you?
A: One-stop SMT Solution Supplier; Reliable SMT Partner.
Q.What is your MOQ requirement for the machine?
A. 1 set moq requirement for the machine.
Q. This is the first i use this kind of machine, is it easy to operate?
A: Provide free training，There are also English manuals or instructional videos to show you how to use the machine.
Q: If the machine has any problem after we receive it, how can we do?
A: Our engineer will help to solve it first, and free parts send to you in machine warranty period.
Q: Do you provide any warranty for the machine?
A: Yes 1 year warranty will be provided for the machine.
Q: What is your payment terms?
A: 30% deposit in advance and 70% balance before shipment.
