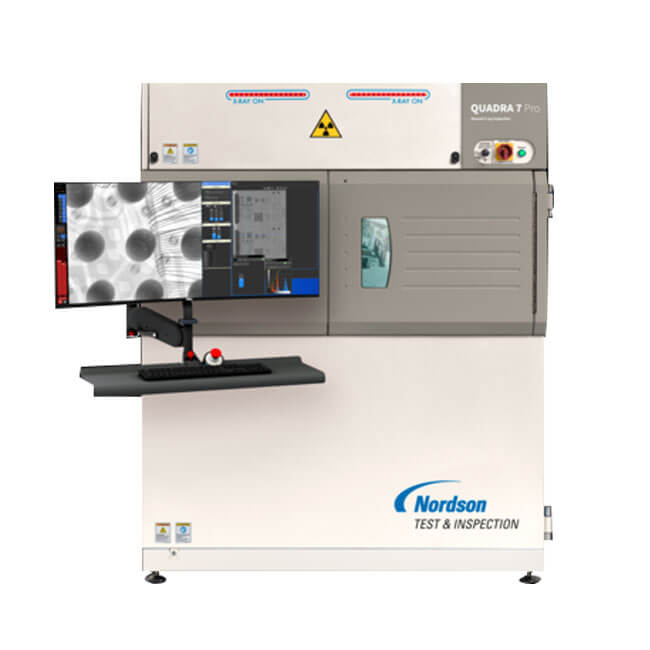

Nordson MXI QUADRA™ 7 Pro X-ray Inspection Machine

Effective Pixel Size：70 µm
Footprint (W × D × H)：1.57 × 1.50 × 1.90 m
X-ray safety：< 1 µSv / hour
Weight：1,950 kg

BASIC INFO

Nordson MXI QUADRA™ 7 Pro X-ray Inspection Machine

Quadra™ Pro series creates unbeatable ultra high resolution images. The in-house designed, high performance Dual Mode NT4 X-ray tube and the Onyx detector provide visibility of even the tiniest detail and finding the defects immediately. Nothing can hide anymore.

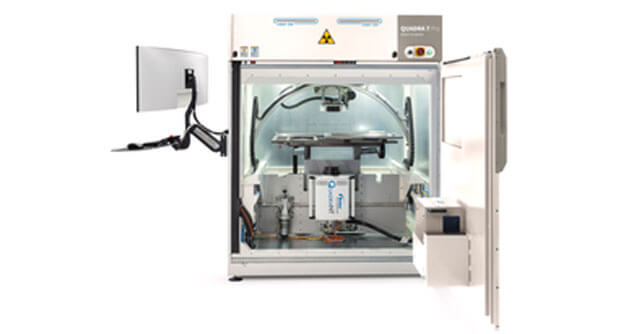

Overview - Turn Images Into Solutions

The Quadra™ 7 Pro sets a new standard for 3D/2D manual inspection with a higher resolution for back-end semiconductor applications. Equipped with the revolutionary Onyx® detector technology, it delivers exceptional image clarity and reduced noise levels, elevating the inspection experience to highest levels of accuracy and efficiency.

The Quadra 7 Pro is equipped with the latest Dual Mode Quadra NT4® tube, which provides users with maximum flexibility. This innovative feature offers brightness and resolution modes, allowing operators to dynamically switch between them based on their specific application requirements.

In addition to its advanced hardware, the Quadra 7 Pro is complemented by the newly developed Revalution™ software. Designed specifically for high-end semiconductor applications, Revalution™ software enhances the user experience with an intuitive interface, optimized workflow, and expanded functionality. It enables operators to efficiently analyze and interpret inspection data, contributing to faster decision-making and improved overall productivity.

Key Core Technology Made In UK

Quadra™ 7 Pro creates unbeatable ultra high resolution images. The in-house designed, high performance X-ray tube and the detector ensure the visibility of even the tiniest detail and finding the defects immediately. Nothing can hide anymore

We want more, we want it better and we want it now!

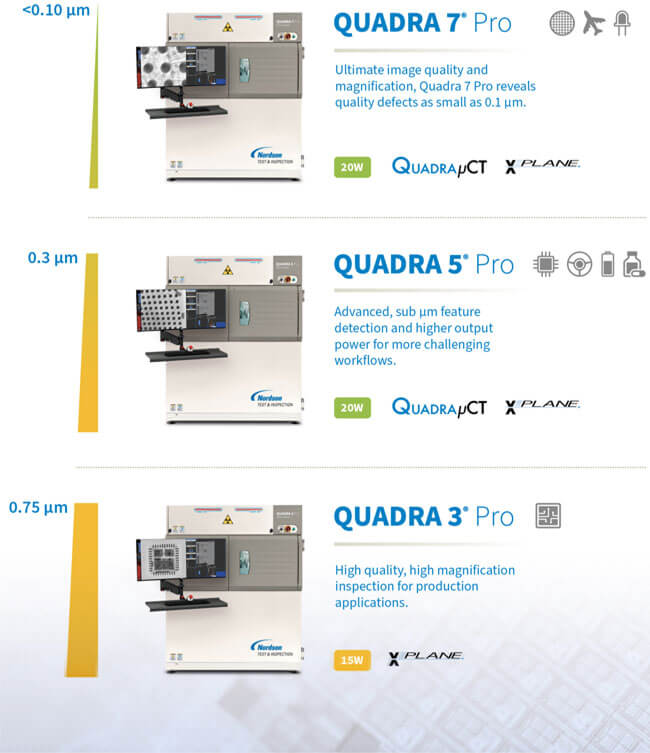

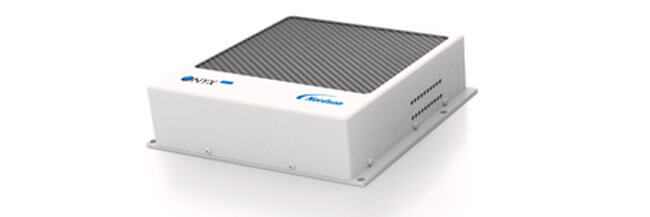

New Onyx Detector
Increased Speed
Less Noise
Increased Clarity

The Latest QuadraNT Tube
Increased Clarity
Easier Operation

New Revalution Software
Optimized Workflow
Increased Stability
Ease of Use

Ergonomic Design

Ultra Wide Curved Display

Under Control

Built to fulfill sensitive semiconductor inspection with even higher resolution images. Proprietary, high performance dual mode X-ray tube and a new advanced detector speed revealing the tiniest details.

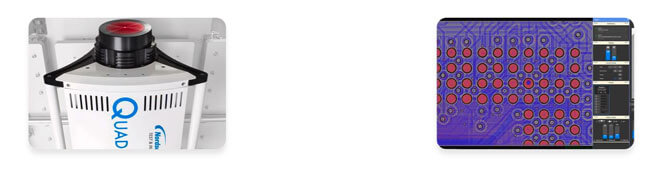

Dual Mode Tube Technology

QuadraNT™ is the powerhouse of Quadra Pro. Nordson’s latest generation X-ray source gets another enhancement with patent-pending, automatic Dual Mode in the Quadra 7 Pro. The tube automatically switches between two modes:

• High resolution mode ideal for sensitive, semiconductor samples
• High flux mode essential for denser, thicker samples

The benefit of Dual Mode is crystal clear images to spot defects in more detail than you have ever seen before!

Revalution™

Nordson's brand new Revalution™ software has everything under control with its modern GUI design and optimized workflow. Revalution™ has many new and optimized features including:

Layout flexibility

Annotations & measurements

Filtering and Imaging

Main tool bar

All In Sight

Designed in-house by a team of semiconductor experts Onyx™ delivers state-of-the-art performance. Using world-class pixel specifications for low dose sensitivity & high saturation dose. Onyx™ has higher frame rates and lower noise, giving you faster images with the highest clarity and brilliance.

Stable and Easy to Maintain

QuadraNT™ tubes use filament free technology for continuous service. Eliminate the risks of oil contamination in the X-ray tube, oil spills or leaks into the work environment. QuadraNT uses an oil free ion pump to maintain X-ray tube vacuum which never requires an oil change. Stable performance is guaranteed since the filament is never changed.
