PARMI AXION Ultra-Precision 3D AOI for Semiconductor Packaging

Extremely fast laser scan 2D & 3D AOI
Highly focused 2 channel laser for 3D data generation
3D laser can inspect highly specular surfaces (Bare die, IPD, Die Attach, and Underfill fillet)
High bandwidth on a broad range of colours, surface roughness, and materials

BASIC INFO

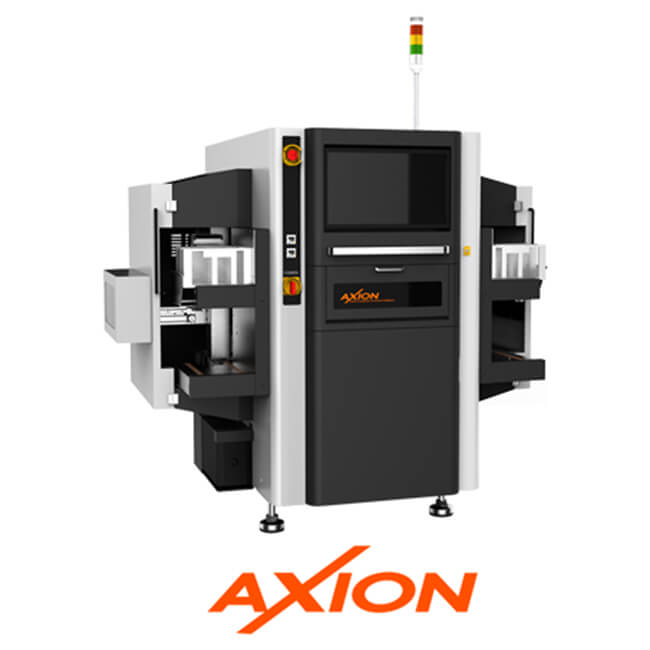

PARMI AXION Ultra-Precision 3D AOI for Semiconductor Packaging

Axion is a precise and high speed 2D & 3D AOI system optimized for inspections required in PCB, lead-frame, FC, and SiP assembly processes such as die attach, cu clip attach, underfill, solder paste and ball attach. It delivers precise 2D inspection capability whilst performing high speed 3D inspections (Height, Tilt, Lift, and Volume) with its a focused laser beam. Axion is the only machine capable of inspecting foreign material/contamination and warpage on the die surface, metal lead frame, and PCB substrates simultaneously.

Key Features

- Extremely fast laser scan 2D & 3D AOI

- Highly focused 2 channel laser for 3D data generation

- 3D laser can inspect highly specular surfaces (Bare die, IPD, Die Attach, and Underfill fillet)

- High bandwidth on a broad range of colours, surface roughness, and materials

- Virtually zero escape & false call rates

- Built-in magazine Loader/Unloader

Technical Specification

1. PARMI’s patented 2D & 3D vision optics unit (TRSC) creates 2D colour images by using a 3 channel RGB LED illumination system and 3D data with 2-channel laser sheet beam. The entire inspection is completed with only a single scan. PARMI’s exclusive laser scan technology can accurately inspect highly specular components and materials such as bare die, IPD, and underfill fillet while other conventional AOI system reflect light away making inspection difficult. Since 3D data is created at a speed more than several-hundred-times faster than the laser pointer method, it is possible to perform 100% inspection and eliminate random sample inspection.

2. The required time to generate a single teaching program with the user-friendly designed user interface and advance intelligent algorithm is typically less than 30 minutes. Various further software tools are available, such as e-Map, Statistical Process Control, operator 2nd verification, remote control and monitoring and offline software.

3. The integrated loader/unloader can handle all types of magazines available on the market; up to 3 magazines of 100mm width or 5 magazines of 60mm width can be loaded at the same time. Magazine replacement does not require any tool change – all work is done with software setting.
