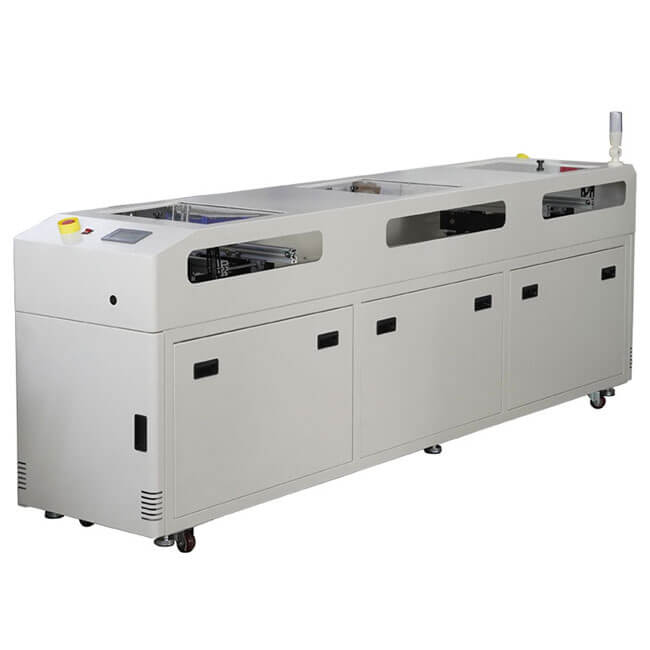

SMT Translation Shuttle PCB Conveyor
1.Adopt Panasonic PLC, imported square photoelectric, LEF intermediate relay control system, stable and reliable.
2.Touch screen display operation, with fault sound and light alarm, automatic diagnosis function.
3.Stepper motor control, adjustable speed and distance
4.Closed design guarantees the highest level of safety.
5.The top safety cover can be opened for easy handing of the machine hardware during maintenance.
6.Imported with steel belt drive for precise positioning and durability.
7.Easy to use touch screen function control interface.
8.A variety of work modes can be selected.
9.Robust and balanced width adjustment (automatic ball screw adjustment)
10.The transfer distance can be set arbitrarily.
11.Automatic calculation of transfer distance by inputting PCB width.
12.Compatible SMEMA interface.
Specifcation
| Model | SD-8300 | ||
| Dimension | 600*1280*1050mm | 600*custom size*1050mm | 600*1750*900mm |
| PCB Board Size | 50*50-500*300mm | 50*50-500*300mm | 50*50-535*390mm |
| Weight | 250KG | - | 300KG |
| Mobile Trolley | Single car | Customized multiple cars | Single car |
| Power Supply | Single phase AC220V 50/60Hz | ||
| Power | 300W | ||
| Fixed Edge | Front fixed(depending on the whole body) | ||
| Transfer Height | 900±20mm | ||
| Transfer Direction | Left to right(optional right to left) | ||
| Operating Mode | Two in one and one in two( can customize multiple working modes) | ||
| Use Environment | Non-corrosive gas and dust environment | ||
| Anti-interference | Voltage noise: 1000Vp-p, wave width 1us, time 1 minute | ||
| Linear Guides | Taiwan silver straight slide (durable and wearable) | ||
Efficient Technology Co.,Ltd provide a full SMT assembly line solutions, including SMT Production Line, SMT Pick and place machine, SMT Stencil Printer, SMT Inspection equipment, SMT Weling equipment, SMT Intelligent Storage System, SMT Automatic Insertion Machine, SMT Peripheral Equipment, SMT Feeders, SMT Nozzles, SMT Spare Parts etc any kind SMT machines you may need, please contact us for more information: WeChat: +8613714564591 Email: sales@efsmt.com
FAQ:
Q: What we can do for you?
A: One-stop SMT Solution Supplier; Reliable SMT Partner.
Q.What is your MOQ requirement for the machine?
A. 1 set moq requirement for the machine.
Q. This is the first i use this kind of machine, is it easy to operate?
A: Provide free training，There are also English manuals or instructional videos to show you how to use the machine.
Q: If the machine has any problem after we receive it, how can we do?
A: Our engineer will help to solve it first, and free parts send to you in machine warranty period.
Q: Do you provide any warranty for the machine?
A: Yes 1 year warranty will be provided for the machine.
Q: What is your payment terms?
A: 30% deposit in advance and 70% balance before shipment.
