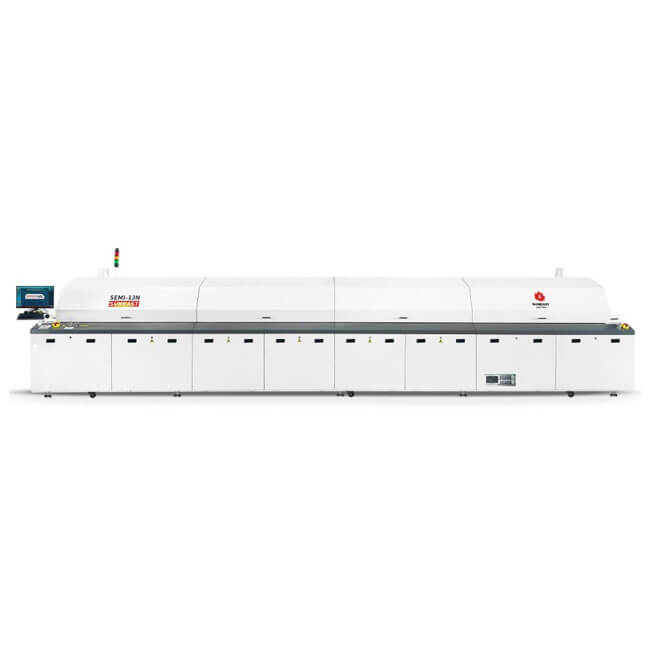

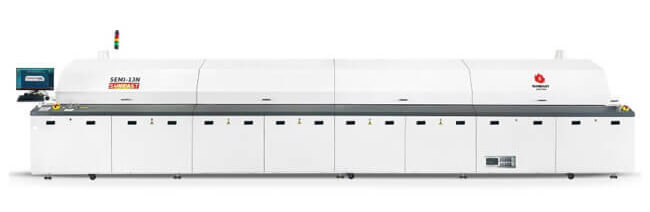

SUNEAST SEMI-10N SMT N2 Reflow Oven
1. The solder paste which is printed on the convex metal surface will be refluxed into a ball to complete the combination welding of the tin ball and the substrate.
2. After the chip is placed to the PCB, the chip and the circuit board are connected together to realize the chip packaging and integrated circuit manufacturing.
Product Details

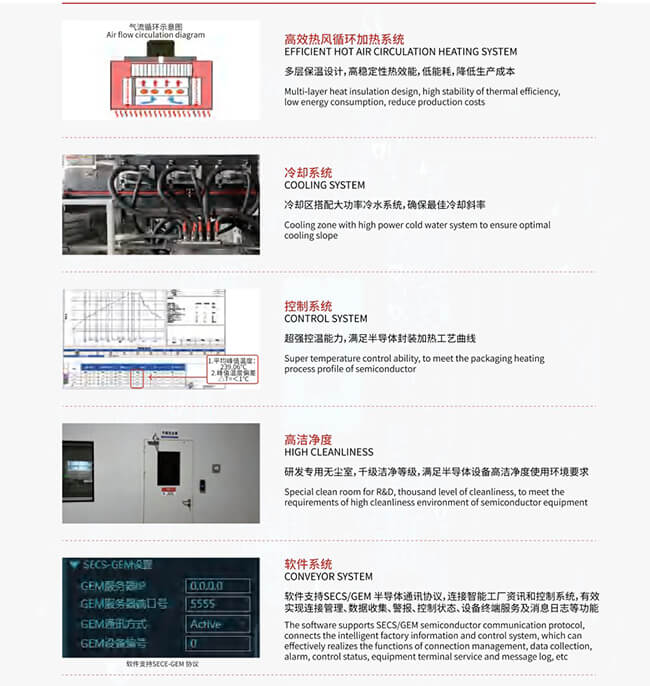

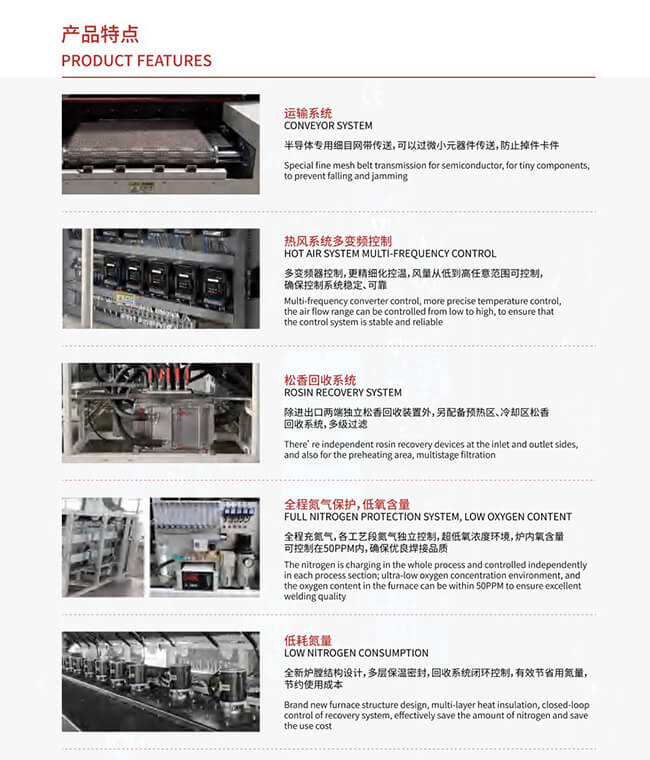

Features:
1. Hot air system with patent, efficient heat compensation ability, accurate temperature control accuracy.
2. With nitrogen protection in the whole process, independent nitrogen control in each temperature zone, to prevent components oxidation during the welding process.
3. Low oxygen content control in the furnace which will be within 50-200PPM during the whole process, to ensure good welding quality.
4. Modular design, efficient cooling system, cooling slope can reach 0.5-6℃/S, to meet the requirements of each process cooling slope.
5. Fine mesh belt for smooth conveying, also for tiny components transmission, prevent falling, to ensure stable product quality.
6. Efficient and clean treatment, to meet the requirements of dust-free workshop for semiconductor.
Model No
SEMI-08N
SEMI-10N
SEMI-13N
Heating system
Heating zone structure
8 heating zones, 16 heating modules
10 heating zones, 20 heating modules
13 heating zones, 26 heating modules
Heating zone length
2950mm
3670mm
4750mm
Heating up time
20min
25min
25min
Outlet Exhaust Diameter,valume
2-Φ145,Exhaust demand 10m³/min x2
Cooling system
Cooling type
Three cooling zones:forced water cooling
Cooling zone length
1250mm
Chiller power
5P Water chiller (Optional: connected to customer workshop cooling water)
Conveyor system
Conveyor Type
Fine mesh mesh belt (Optional: B-shaped mesh belt, force bone mesh belt)
Conveyer Direction
左→右，右→左/L→R,R→L
Converyer Height
900±20mm
Mesh belt width
24"(Other width sizes can be customized.)
Cmponent Height
20mm
Conveyor Speed
300mm-2000mm/min
Control system
Power
AC3Ø 5W 380V 50/60HZ
Total Power
70KW
89KW
118KW
Startup Power
35KW
38KW
42KW
Normal consumption
10KW
12KW
14KW
Temp Control Range
Room temperature to 320℃
Control type
PC+PLC Control system
Temp Control accuracy
±1℃
PCB Temp Deviation
±1.5℃
Data Storage
Process Data and status stotage
Power Outage Protection
Equipped with UPS
Operation Interface
Windows Chinese simplified, English online free switching
N2 area
Full nitrogen filling
Secs/Gemcommunication protocol
Standard
MES communication protocol
Standard
Computer
Commercial computer
General
Dimension(LxWxH)
5680x1710x1650mm
6400*1710*1650mm
7500*1710*1650mm
Weight
2400-2600kg
3200-3400kg
3600-3800kg
Flux recovery system
Standard
Color
Bright wrinkled white
