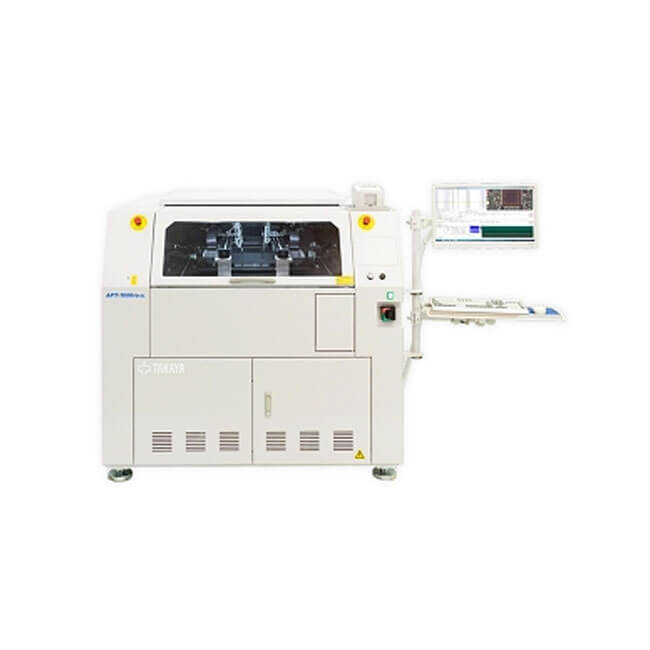

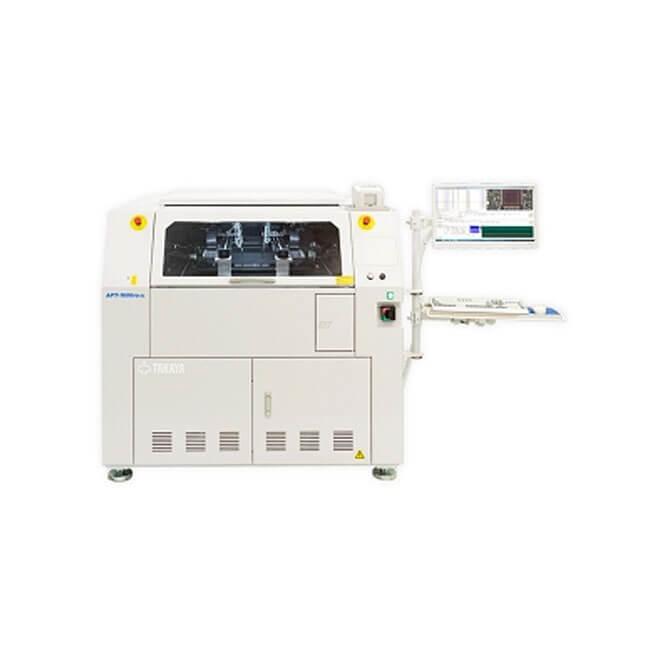

TAKAYA APT-1600FD-SL Flying Probe Tester
Dual-side Flying Probe Tester
The APT-1600FD Series is a dual-sided flying probe test system which deploys the flying probes to both sides of a printed circuit board. Owing to the simultaneous dual-sided probing contact, the APT-1600FD Series can contribute to a marked increase in test coverage with shortest amount of test time.
The APT-1600FD Series has world-class test speed and positioning accuracy, and is equipped with laser height measurement system, LED test sensors and a wealth of extraordinary test functionalities that significantly expand the application possibilities of flying probe tester.
Product Details
| Part Number | APT-1600FD-SL |
| Manufacturer | Takaya Corp. |
| General Parameters | |
| System Type | Dual Side |
| No of Heads | 6 Heads |
| Max board size | 635 x 610 mm |
| Measurement Speed | 0.03 sec/step |
| Current | 2.8 kVA |
| Capacitance | 0.5 pF - 200 mF |
| Inductance | 0.5 μH - 500 H |
| Resistance | 5 to 50 mohms |
| Power Supply | AC200-240V single phase 50/60 Hz |
| Net Weight | 1600 kg |
| Overall Dimensions | 1520 x 1620 x 1400 mm |
SMT Inspection Equipment Brand
Efficient Technology Co.,Ltd provide a full SMT assembly line solutions, including SMT Production Line, SMT Pick and place machine, SMT Stencil Printer, SMT Inspection equipment, SMT Weling equipment, SMT Intelligent Storage System, SMT Automatic Insertion Machine, SMT Peripheral Equipment, SMT Feeders, SMT Nozzles, SMT Spare Parts etc any kind SMT machines you may need, please contact us for more information: WeChat: +8613714564591 Email: sales@efsmt.com
FAQ:
Q: What we can do for you?
A: One-stop SMT Solution Supplier; Reliable SMT Partner.
Q.What is your MOQ requirement for the machine?
A. 1 set moq requirement for the machine.
Q. This is the first i use this kind of machine, is it easy to operate?
A: Provide free training，There are also English manuals or instructional videos to show you how to use the machine.
Q: If the machine has any problem after we receive it, how can we do?
A: Our engineer will help to solve it first, and free parts send to you in machine warranty period.
Q: Do you provide any warranty for the machine?
A: Yes 1 year warranty will be provided for the machine.
Q: What is your payment terms?
A: 30% deposit in advance and 70% balance before shipment.
