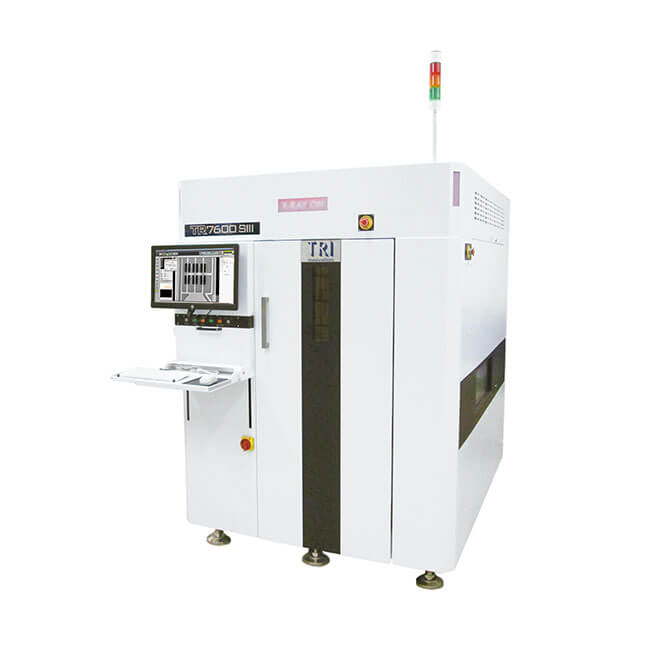

TRI TR7600 SIII SMT X-ray Inspection Machine
The TR7600 SIII CT AXI series is TRI's new generation of iconic online PCBA inspection solutions. TR7600SIII includes a design that can match the production line speed to achieve 100% inspection coverage, combines the industry's fastest high-resolution imaging speed, and greatly improves image quality in the industry's most advanced automatic X-ray inspection.
Features
• Ultra-high-speed 3D CT X-ray inspection
• Superior image quality
• Real 3D solder point inspection
• High-resolution inspection of wafers as small as 01005in
Specification
|
Camera |
Ultra-High Speed Line-Scan CCD Cameras (3 or 5 Units) |
|
X-ray Source |
Microfocus tube 130 kV max (user adjustable) |
|
Imaging Resolution |
7 μm, 10 μm, 15 μm, 20 μm (user selectable) |
|
Inspection Method |
2D, 2.5D, 3D Slicing, Planar CT (Optional) |
|
Motion Table & Control |
|
|
X-Axis Control |
High-precision ballscrew + AC-servo controller |
|
Y-Axis Control |
High-precision ballscrew + AC-servo controller |
|
Z-Axis Control |
High-precision ballscrew + AC-servo controller |
|
XY Axis Resolution |
N/A |
|
Board Handling |
|
|
Max PCB Size |
Standard: 520 x 520 mm |
|
2 Stages: 900 x 520 mm |
|
|
PCB Thickness |
0.6-7 mm |
|
Max PCB Weight |
12kg |
|
Top Clearance |
@ 20 μm: 50 mm |
|
@ 15 μm: 30 mm |
|
|
@ 10 μm: 15 mm |
|
|
@ 7 μm: 7 mm |
|
|
Bottom Clearance |
70mm |
|
Edge Clearance |
3 mm or 5 mm |
|
Conveyor Height |
880-920 mm |
|
Inspection Functions |
|
|
Capabilities |
Missing |
|
Misalignment |
|
|
Tombstone |
|
|
Billboard |
|
|
Tantalum Polarity |
|
|
Rotation |
|
|
Floating |
|
|
Defects |
Insufficient/Excess Solder |
|
Bridging |
|
|
Open |
|
|
Solder Ball |
|
|
Non-wetting |
|
|
Void |
|
|
Lifted Lead |
|
|
Dimensions |
|
|
wxya |
1470 x 2110 x 1975 mm |
|
|
|
|
Note: not including signal tower, height: 510 mm |
|
|
Weight |
3850kg |
|
Power Requirement |
200 - 240 VAC single phase, 50/60 Hz, 4 kVA |
