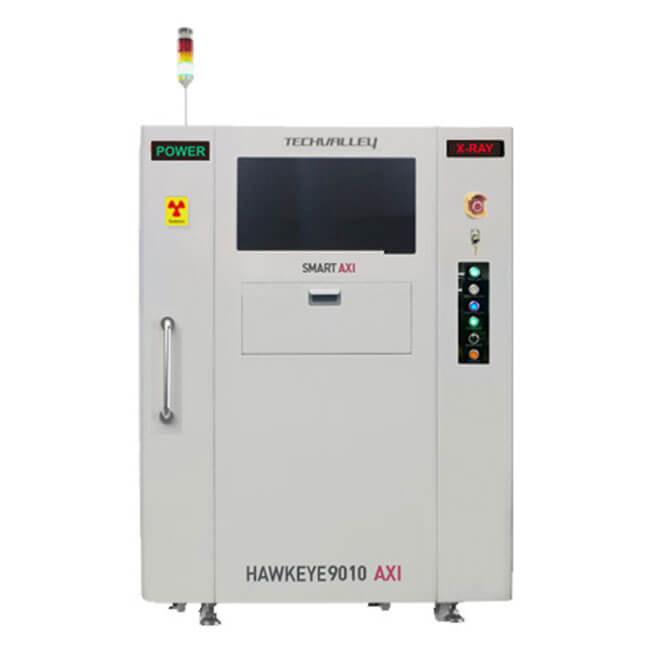

Techvalley HAWKEYE9010 X-ray Inspection Machine
2D In-Line X-ray Inspection Equipment
Inspection Item
HAWKEYE9010 AXI System is X-ray automated inspection equipment which was developed by own technology in 2014 and installed directly in Vietnam SMT production in-line. It is detecting defects of various inspection item by applying special algorithm developed by Techvalley’s own image software team. It is possible to detect not only one-sided mounting board but alsi duplicated image of double-sided mounting board. Techvalley realized the best cost-effectiveness, world-class inspection speed and detection power by 100% self-technologies.
Realization of high-speed inspection of 0.4 to 0.8 seconds per point (depending on type of inspection)
Fast and precise automated inspection realization equipment with i-TOP technology
Self-manufactured inspection algorithm enables user-desired automatic inspection
Customer data management such as MES, SPC, and Review Function can be applied

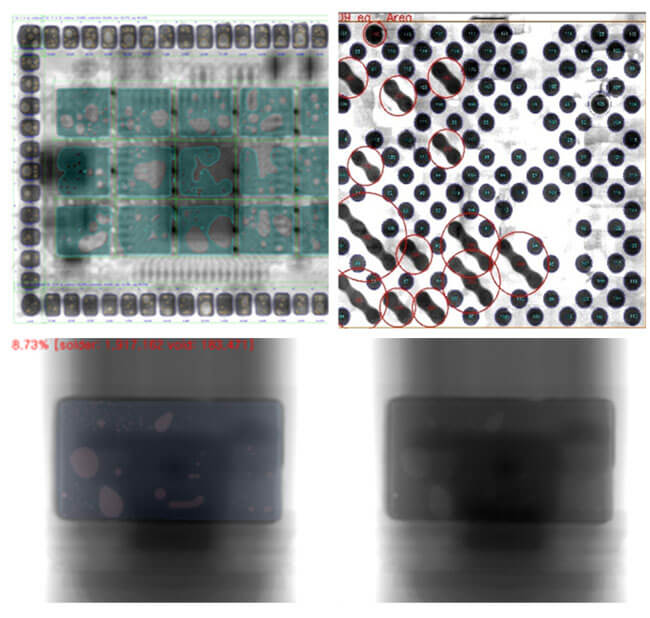

Inspection Image
Specification
| X-ray Source | 110kV / 25W / 5㎛ Focal Spot Size |
| Image Detection System | 6.9M Pixels / 49㎛ Pixel size |
| Inspection Area | Max.300㎜X300㎜/ Min.150㎜x100㎜ |
| Utility | Power : 220VAC / Air : 5kgf/cm² |
| Dimension & Weight | (W)1,112㎜ X (D)1,610㎜ X (H)1,550㎜ / 1,700kg |
SMT Inspection Equipment Brand
Efficient Technology Co.,Ltd provide a full SMT assembly line solutions, including SMT Production Line, SMT Pick and place machine, SMT Stencil Printer, SMT Inspection equipment, SMT Weling equipment, SMT Intelligent Storage System, SMT Automatic Insertion Machine, SMT Peripheral Equipment, SMT Feeders, SMT Nozzles, SMT Spare Parts etc any kind SMT machines you may need, please contact us for more information: WeChat: +8613714564591 Email: sales@efsmt.com
FAQ:
Q: What we can do for you?
A: One-stop SMT Solution Supplier; Reliable SMT Partner.
Q.What is your MOQ requirement for the machine?
A. 1 set moq requirement for the machine.
Q. This is the first i use this kind of machine, is it easy to operate?
A: Provide free training，There are also English manuals or instructional videos to show you how to use the machine.
Q: If the machine has any problem after we receive it, how can we do?
A: Our engineer will help to solve it first, and free parts send to you in machine warranty period.
Q: Do you provide any warranty for the machine?
A: Yes 1 year warranty will be provided for the machine.
Q: What is your payment terms?
A: 30% deposit in advance and 70% balance before shipment.
