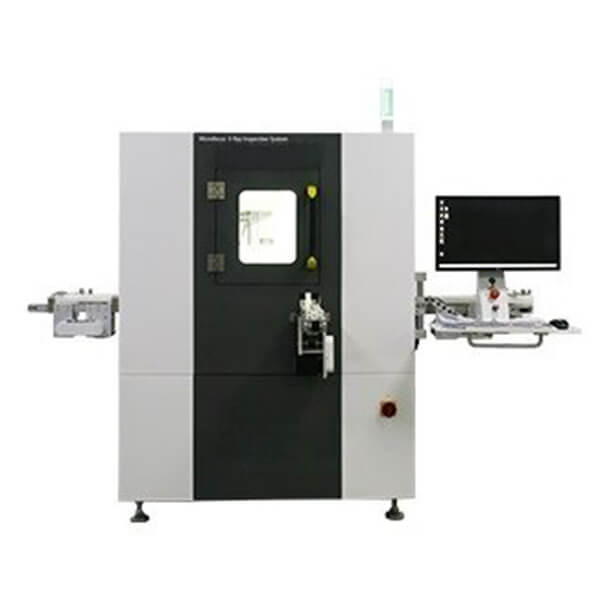

XB8100 PCB AOI Inspection Machine
XB8100 SMT AOI (automated optical inspection) Machine is mainly used for automatic online detection of positive and negative alignment during the production of cylindrical 18650 batteries. This AOI automated optical inspection equipment is based on the fully automatic optical detection developed on the basis of an image detection technology system. The AXI automated optical inspection machine is converted into a visible image by X-Ray perspective, and the image information is obtained by a flat panel. Measure the alignment deviation between the positive and negative electrodes of the battery, automatically select the bad BGA X-Ray machine, and automate the entire testing process.
Features of XB8100 PCB AOI Inspection Machine
1.A high-resolution flat panel detector was developed by adopting a 130KV, 16UM X-Ray light tube.
2.Automatic detection and judgment, automatic sorting of good and bad aoi vision systems, can meet the needs of online and offline detection.
3.The door related to the product optics are equipped with an interlock function, and X-Ray cannot work without closing any door.
4.Modular design can realize automatic loading and unloading.
5.By storing bad battery picture information in real time, historical records can be traced.
6.Save the inspection image and the original image at same time, and save the inspection data in a table for easy viewing and analysis.
7.The inlet and outlet can be connected to the production line.
Specification
|
XB8100 AOI inspection equipment |
|
|
X-Ray Tube Source Specification |
|
|
Tube Type |
Sealed Micro-Focus X-Ray Source |
|
Voltage |
130KV |
|
Operating Voltage Range |
40-130KV |
|
Operating Current Range |
10-300μA |
|
Max Output Power |
39W |
|
Micro Focus Spot Size |
16-50μm |
|
Flat Panel Detector Specification |
|
|
Flat-panel Type |
CMOS flat panel detector |
|
Pixel Matrix |
1172×1100 |
|
Field of View |
58mm×54mm |
|
Resolution |
10.1Lp/mm |
|
Frame（1×1) |
30fps |
|
A/D Conversion Bit |
14bits |
|
|
|
|
Dimensions |
L2450mm×W1560mm×H1740mm |
|
Input Power |
220V 10A 50-60HZ |
|
Net Weight |
Approx 1430KG |
|
Radiation |
＜1μSv/h |
SMT Inspection Equipment Brand
