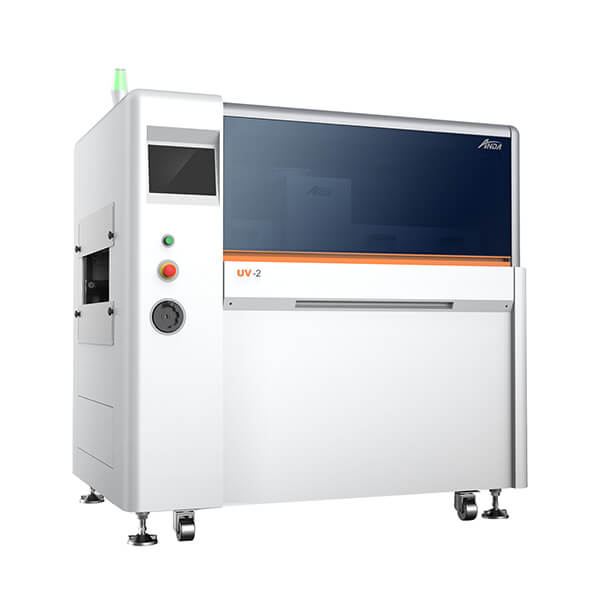

Anda UV Curing Oven Machine UV-3

Board / Pallet Width：50-460 mm
Component Height：± 100 mm
Conveyor Height：900 ± 20 mm
Standard Footprint：L 1500 x W 1137 x H 1460 mm

BASIC INFO

Anda UV Curing Oven Machine UV-3

Conformal Coatings, Adhesive Glues, and UV Curable Inks

The Anda UV curing oven series is the most powerful compact inline high intensity Ultraviolet (UV) curing oven system in the industry. It is capable of exceeding the maximum UV intensity requirements for curing virtually any UV curable product on the market today. In a class of its own, the system cost is also more affordable than rivaling products offered by competitors.

The inline UV curing oven series is available in LED for UVA LED curable coatings or Mercury Long-Arc for high intensity, rapid curing of UV curable coatings, adhesives, and inks. Closed-loop supply air ensures every substrate receives the same amount of cooling UV wavelength tailored to the ink, coating, or adhesive formulation.

The inline UV curing system was designed with enhanced safety protection to ensure operator protection from harmful UV radiation. The systems SMEMA communication and touch screen control interface integrates into new or existing factory automation lines or can also be used stand-alone. Pairs seamlessly with selective conformal coating spraying systems and does not interfere with wireless networks.

Standard Features

PLC touch screen control

Edge carrying, variable speed pin chain conveyor

Rail expansion compensation

SMEMA communication protocol

100 mm top and bottom side component clearance

Adjustable lamp intensity for long lamp life

Advanced variable frequency power technology ensures stable UV output and reduces energy consumption

Optional Features

UV LED for UVA LED curable coatings

UV Mercury Long-Arc

Dual lamps top cure only

Top and bottom simultaneous cure

Return conveyor beneath

UV-3 Specifications

One mercury medium pressure long-arc lamp above the conveyor for top side curing and another below the conveyor for bottom side curing. Coatings or adhesive glues on the top and bottom sides of an assembly are cured simultaneously within a single UV oven. This UV oven solution is mainly for highly viscous coatings or glues that are less likely to flow or move while inverted prior to being cured.

Transmission System
Board / Pallet Width	50-460 mm (1.96″ -18.11″)
Component Height	± 100 mm (± 3.93″)
Conveyor Height	900 ± 20 mm (35.43″ ± 0.79″)
Process Flow	L to R (Standard),
Process Flow	R to L (Optional)
Conveyor Speed (XY)	0.5 – 5 m/min
Convery Width Adjustment	Manual
Maximum Load	4 kg (Standard), 10 kg (Optional)
Facility
Standard Footprint	L 1500 x W 1137 x H 1460 mm
Standard Footprint	(L 59.06″ x W 44.76″ x H 57.48″)
Weight	410 kg
Power	Designed to operate at 380 VAC, 3 Phase, 20kVA
Power	When needed, available optional transformer for input voltages 208V or 480V
Rated Power	13.0 kW
Lamp Configuration	Single UV lamps above & below conveyor
Interface
Controller	PLC and touch screen
Exhaust Requirement	11.33 m³/min (400 CFM)
Communication Protocols	SMEMA & IPC-CFX
Ultraviolet Irradiation
UVA	> 500 mW/cm²
UVB	> 500 mW/cm²
UVC	> 100 mW/cm²
