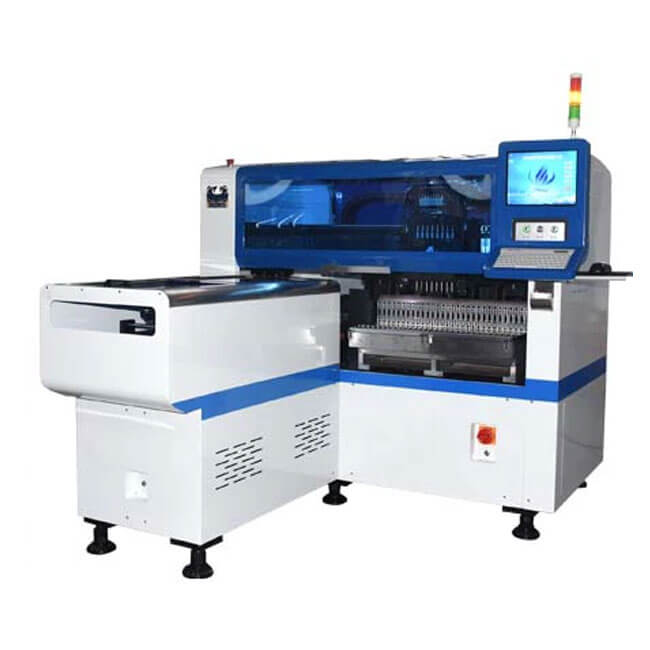

ETON E8S-1200 Pick and Place Machine
24 Heads SMT Electric Board And Place Machine
Product features The pick and place machine is single module equipped with 12 suction nozzles and 28 feeders, each suction head controlled by a servo motor, and the two work together. PCB boards with different angles can be installed, such as the circular state of the light bulb. The PCB board...
Product features
The pick and place machine is single module equipped with 12 suction nozzles and 28 feeders, each suction head controlled by a servo motor, and the two work together. PCB boards with different angles can be installed, such as the circular state of the light bulb.
The PCB board is pneumatically fixed with adjustable pressure, which has the advantages of simple structure, reliable and stable action, large output force, convenient installation and maintenance, and can be fireproof and explosion-proof.
Pick and place machine mounting components range: Belt mounted lamp beads, lenses, capacitors, resistors, IC, and various special shaped components. Minimum mounting 0402 elements, maximum mounting range: 15mm.
Technical parameter
Model
E8S-1200
Dimension
2550*1650*1550mm
PCB size(L* W)
Max:1200*500mm Min；100*100mm
Mounting mode
Group picking and separately placing、separately picking and separately placing
No.of camera
2setsDigital camera（Digital camera）
Components
LED chip、capacitors、resistors、IC、shaped components、etc.
No.of feeders station
28PCS
No.of nozzles
12PCS
Conveyor transmission
Max Length：1200mm
Electrical control
Independent research and development by ETON
X,Y,Z Axis drive way
High-end magnetic linear motor +Servo motor
Feeding way
Electric feeder with double motor
SMT Pick and place machine Brand
Efficient Technology Co.,Ltd provide a full SMT assembly line solutions, including SMT Production Line, SMT Pick and place machine, SMT Stencil Printer, SMT Inspection equipment, SMT Weling equipment, SMT Intelligent Storage System, SMT Automatic Insertion Machine, SMT Peripheral Equipment, SMT Feeders, SMT Nozzles, SMT Spare Parts etc any kind SMT machines you may need, please contact us for more information: WeChat: +8613714564591 Email: sales@efsmt.com
FAQ:
Q: What we can do for you?
A: One-stop SMT Solution Supplier; Reliable SMT Partner.
Q.What is your MOQ requirement for the machine?
A. 1 set moq requirement for the machine.
Q. This is the first i use this kind of machine, is it easy to operate?
A: Provide free training，There are also English manuals or instructional videos to show you how to use the machine.
Q: If the machine has any problem after we receive it, how can we do?
A: Our engineer will help to solve it first, and free parts send to you in machine warranty period.
Q: Do you provide any warranty for the machine?
A: Yes 1 year warranty will be provided for the machine.
Q: What is your payment terms?
A: 30% deposit in advance and 70% balance before shipment.
