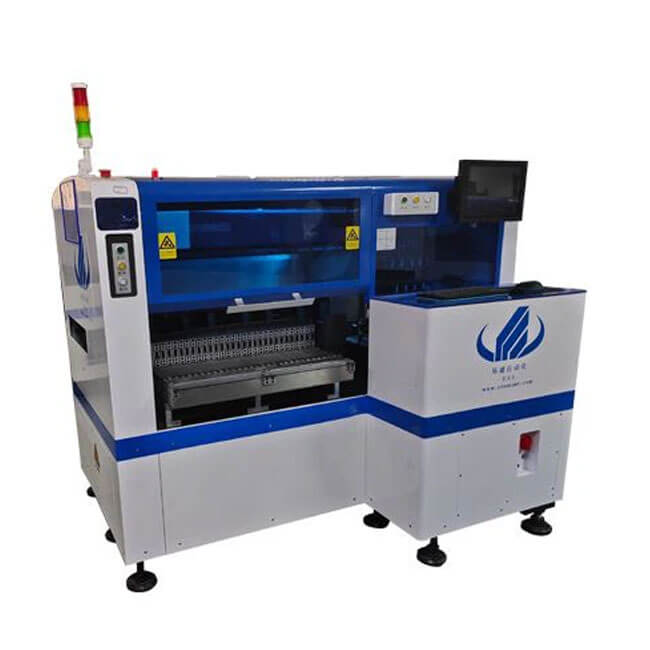

ETON HT-E5S Pick and Place Machine
ETON Smt Automatic Pick And Place Machine With High Precision
1.Single module manetic linear motor multifunctional pick and place machine
2.Mounting components:LED,capacitors,resistors,IC,shaped components,etc.
3.Application: power driver.electric board.lens.linear bulb.household appliance etc.
4.Component:min.size 0402 max.height 36 mm.
Product Details
smt mounter machine led lights assembly machine MUTIFUNCTIONAL for DOB,bulbs,strip light,tube light,panel light
With the development of science and technology, SMT technology is widely used in the production of lighting industry.According to the development of the market, all kinds of LED lights can be mounted on the automatic mounter of ETON.
ProductsFeatures of E5S pick and place machine1.HT-E5S led light therapy machine with Single module manetic linear motor multifunctional pick and place machine
2.HT-E5S led light manufacturing machine ,Mounting components:LED,capacitors,resistors,Ic,shaped components,etc3.Application: power driver.electric board.lens.linear bulb.household appliance etc.
4.Component:min.size 0402 max.height 36 mm.
HT-E5S manual led bulb making machine ,Mounting mode：Group to picking and separate to placing；Separate to picking and separate to placing.
Y axis and Z axis is High-end magnetic linear motor; Z axis 8 servo motor.
|
HT-E5S |
||
|
PCB |
PCB length width |
Max:500*350mm min:100*100mm |
|
PCB thickness |
0.5~3mm |
|
|
PCB clamping |
Electric clamping + Adjustable pressure pneumatic |
|
|
Mounting mode |
Group to picking and separate to placing |
|
|
Separate to picking and separate to placing |
||
|
O.S. |
system |
Windows 7 |
|
software |
R&D independently |
|
|
display |
LED monitor |
|
|
Input device |
Keyboard , mouse |
|
|
Vision |
No.of camera |
2sets of imported camera |
|
system |
Vision for the alignment identification,mark correction |
|
|
|
Mounting precision |
0.02mm(repeat precision) |
|
|
Mounting height |
<36mm |
|
|
Mounting speed |
40000CPH |
|
|
Components space |
0.2mm |
|
|
Power |
380AC 50HZ |
|
|
Power consumption |
4KW |
|
|
Conveyor transmission |
Max length:500mm |
|
|
Transmission speed |
>500mm/sec |
|
|
Transmission direction |
Both direction |
|
|
Transmission mode |
Auto online drive |
|
|
Air pressure |
>5.0kg /cm² |
|
|
Electrical control |
Independent research and development by ETON |
|
|
X,Y,X axis drive way |
High-end magnetic linear machine + Servo motor control for X,Y,Z axis |
|
|
Feeding way |
|
|
Feeding system |
No.of feeders station |
30PCS |
|
No.of nozzles |
8PCS |
|
|
Feeding way |
Electric feeder with double motor |
|
Efficient Technology Co.,Ltd provide a full SMT assembly line solutions, including SMT Production Line, SMT Pick and place machine, SMT Stencil Printer, SMT Inspection equipment, SMT Weling equipment, SMT Intelligent Storage System, SMT Automatic Insertion Machine, SMT Peripheral Equipment, SMT Feeders, SMT Nozzles, SMT Spare Parts etc any kind SMT machines you may need, please contact us for more information: WeChat: +8613714564591 Email: sales@efsmt.com
FAQ:
Q: What we can do for you?
A: One-stop SMT Solution Supplier; Reliable SMT Partner.
Q.What is your MOQ requirement for the machine?
A. 1 set moq requirement for the machine.
Q. This is the first i use this kind of machine, is it easy to operate?
A: Provide free training，There are also English manuals or instructional videos to show you how to use the machine.
Q: If the machine has any problem after we receive it, how can we do?
A: Our engineer will help to solve it first, and free parts send to you in machine warranty period.
Q: Do you provide any warranty for the machine?
A: Yes 1 year warranty will be provided for the machine.
Q: What is your payment terms?
A: 30% deposit in advance and 70% balance before shipment.
Jacky
Jacky
