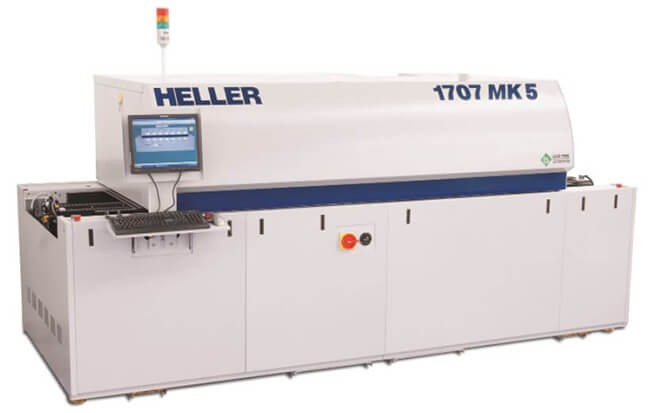

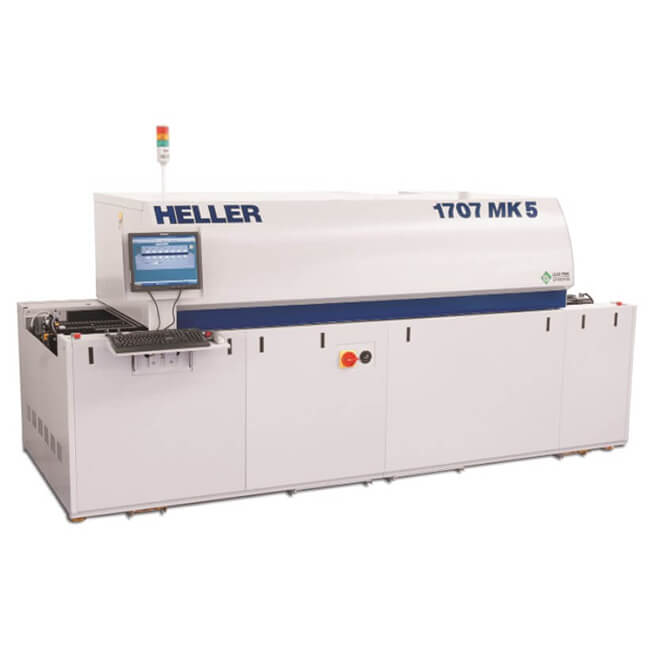

HELLER 1707 MK5 Reflow Soldering Oven

360 cm overall length
190 cm heated tunnel length
7 heating zones (top and bottom, forced convection)
1 cooling zone

BASIC INFO

HELLER 1707 MK5 Reflow Soldering Oven

Small Footprint Reflow Soldering Oven Designed for Low Cost of Ownership

The 1700 reflow soldering oven models support high mix / medium volume throughput… at speeds up to 24 inches (60 centimeters) per minute, while conserving valuable factory floor space. Rapid response times and precise temperature controls assure process uniformity, regardless of component density or board loading, with identical profile performance in either air or nitrogen.

Highest Yields and Tight Process Control

- The most efficient heat transfer from extra high volume, high-velocity, heating modules, producing heater module response of less than one second to temperature changes of less than 0.1ºC, thereby maintaining profile integrity for heavy printed circuit board loads.

- Wide process window for “universal profiling” – allows many different printed circuit boards to be run on a single temperature profile

- Advanced 5 thermocouple PCB profiling and process parameter logging capability with the capacity to store up to 500 temperature recipes and 500 reflow profile graphs

Features and benefits of 1707 SMT reflow system

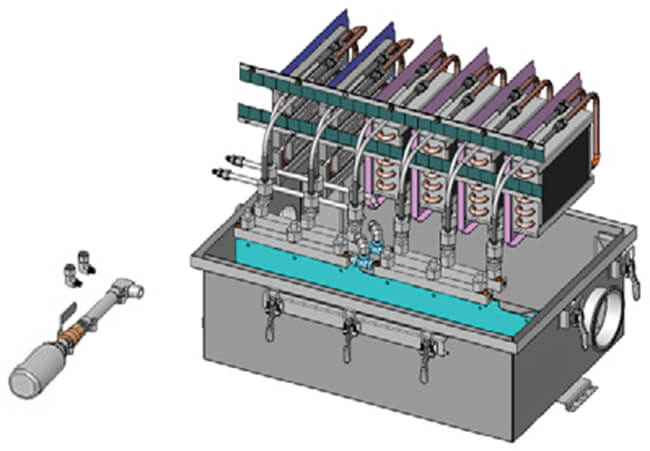

New Flux System Virtually Eliminates Maintenance

This new flux collection system traps the flux in a separate collection box with easy to remove plates. As a result, the oven tunnel is kept clean – thus saving time consuming P.M. A collection jar captures the pcb flux and can be removed while the reflow oven is running for the ultimate in time savings!

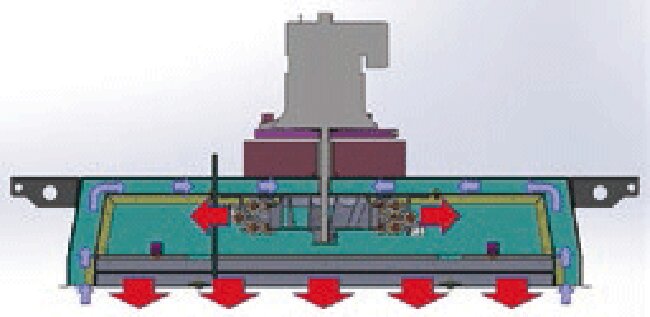

Enhanced Heater Modules

Enhanced flow heater modules with 40% larger impellar, blanket the PCB with heat for the lowest delta Ts on the toughest boards! Additionally, the Uniform Gas Management system eliminates net flow which results in nitrogen consumption reductions of up to 40%!

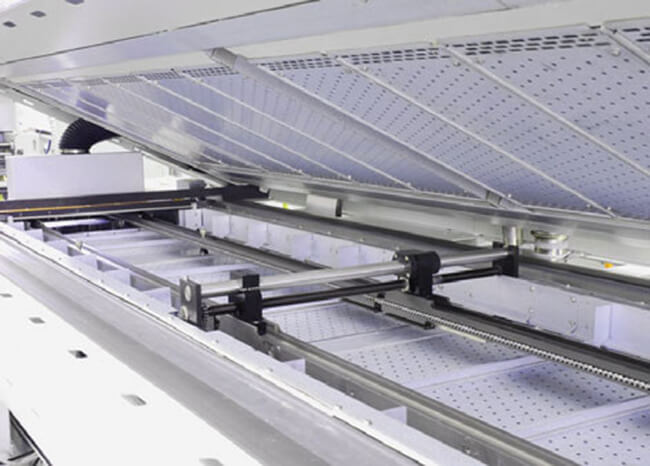

Ultra-Parallel Conveyor System

Four (4) lead screws ensures the tightest tolerances and parallelism – even on boards with 3mm clearance at the edges!

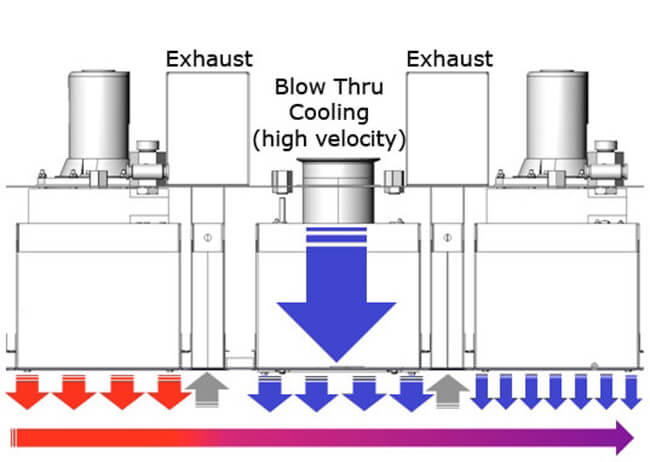

Fastest Cooling Rates

The new Blow Thru Cooling module provides cool rates of >3º C/sec – even on LGA 775! That rate meets even the most demanding lead-free profile requirements!

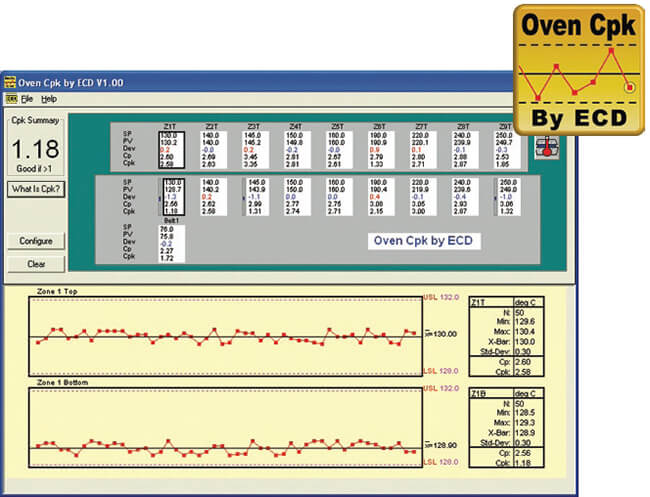

Process Control

Powered by ECD, this innovative software package provides three levels of process control from Oven CpK, to Process CpK and Product Traceability, this software ensures that all parameters are optimized and SPC reporting is fast and easy.

New Frame

More than simply beautiful, this new frame utilizes twice the insulation. This modification alone, reduces heat loss and saves up to 40% on electricity costs!

Lead Free Certified

-More Lead free product has been run on Heller machines than any other! We have pioneered the Lead Free Reflow process by working closely with the Japanese OEM’s and International ODM’s and EMS’s to refine the Lead Free process. The Mark V system includes features that provide:

- Spike Zone” design to minimize liquidous time

- Ultra fast cooling rates of 3-5 Deg/Sec to form perfect grain structure

- More heated zones than any other competitor to allow “Profile Sculpting”

Lowest Cost of Ownership

With the Balanced Flow Heater Module (BFM) technology the cost of running nitrogen has been reduced by up to 50%! And the LOW KW features have reduced Electrical consumption by up to 40%! Cost savings on nitrogen and electricity combined of $15,000 – $18,000 per year have been realized by our customers!

Best Return on Investment (ROI)

Total savings of $22,000 – $40,000 per year can be achieved with the new MKV system for the fastest ROI in the industry!

Model	1707 MK5(Air)	1707 MK5 (Nitrogen)
Power Input (3 Phase) Standard	480 volts	480 volts
Breaker Size	100 amps @ 480v	100 amps @ 480v
kW	7 – 12 Continuous	7 – 12 Continuous
Typical Run Current	20 – 30 amps @ 480v	20 – 30 amps @ 480v
Optional Power Inputs Available	208/240/380/400/415/440/480 VAC	208/240/380/400/415/440/480 VAC
Frequency	50/60 Hz	50/60 Hz
Sequential Zone Turn On	S	S
Dimensions
Overall Oven Dimensions	142″ (360cm) L x 60”(152cm) W x 63” (160cm) H	142″ (360cm) L x 60”(152cm) W x 63” (160cm) H
Typical Net Weight	3417 lbs. (1550kg)	3637 lbs. (1650 kg)
Typical Shipping Weight	4034 lbs. (1830 kg)	4520 lbs. (2050 kg)
Typical Shipping Dimension	146” x 73” x 81”	370 x 185 x 205cm
Computer Control
AMD or Intel Based Computer	S	S
Flat Screen Monitor w/Mount	S	S
Windows Operating System	Windows 10Ò Home	Windows 10Ò Home
Auto Start Software	S	S
Data Logging	S	S
Password Protection	S	S
LAN Networking	O	O
Inert Atmosphere
Minimum PPM Oxygen	–	10-25 PPM*
Waterless Cooling w/ Flux Separation System	–	O
Nitrogen On/Off Valve	–	O
Oxygen Monitoring System	–	O
Nitrogen Standby System	–	O
Typical Nitrogen Consumption	–	500 – 700 SCFH **
Additional Features
KIC Profiling Software	S	S
Signal Light Tower	S	S
Powered Hood Lift	S	S
Five (5)Thermocouple Profiling	S	S
Redundant Alarm Sensors	O	O
Intelligent Exhaust System	O	O
KIC Profiler / ECD Profiler	O	O
Center Board Support	O	O
Board Drop Sensor	O	O
Board Counter	O	O
Bar Code Reader	O	O
Custom Paint & Decal	O	O
Battery Backup for Conveyor and PC	O	O
GEM/SECS Interfacing	O	O
May require additional hardware to achieve these levels * Varies with PPM, PCB size and oven configuration Mesh Belt Conveyor
Height From Floor	37.5″ + 2.4″ (95 cm + 6 cm)	37.5″ + 2.4″ (95 cm + 6 cm)
Maximum PCB Width	22″ (56 cm)	22″ (56 cm)
Space Required Between PCBs	0.0″ (0.0 cm)	0.0″ (0.0 cm)
Conveyor Length On-Load	18″ (46 cm) *	3″ (7.5 cm) *
Conveyor Length Off-Load	18″ (46 cm) *	3″ (7.5 cm) *
Heated Tunnel Length	75″ (190 cm)	75″ (190 cm)
Process Clearance Above Mesh Belt	2.3″ (5.8 cm)	2.3″ (5.8 cm)
Mesh Belt Pitch	0.5″ (1.27 cm)	0.5″ (1.27 cm)
Maximum Conveyor Speed	74″/Min (188 cm/min.)	74″/Min (188 cm/min.)
Conveyor Direction Left to Right	S	S
Conveyor Direction Right to Left	O	O
Conveyor Speed Control	Closed Loop	Closed Loop
Edge Hold Conveyor System Option
Height from Floor – Standard	38.6″ + 2.4″ (98 cm + 6 cm)	38.6″ + 2.4″ (98 cm + 6 cm)
Height from Floor – Optional	35.4″ + 2.4″ (90 cm + 6 cm)	35.4″ + 2.4″ (90 cm + 6 cm)
Clearance Above & Below Conveyor Pins	1.15″ (2.9 cm)	1.15″ (2.9 cm)
Length of PCB Support Pins	.187″ (4.75 mm)	.187″ (4.75 mm)
3 mm long support pins	O	O
Minimum/Maximum Board Width	2″ – 22″ (5 – 56 cm) 24” (61cm) Optional**	2″ – 22″ (5 – 56 cm) 24” (61cm) Optional**
Power Width Adjustment	S	S
Computer Controlled Width Adjust	O	O
Auto Lubrication System	S	S
Forced Convection Zones
Top & Bottom	7	7
Heater Type	Instant response open coil	Instant response open coil
Heater Material	Nichrome	Nichrome
Profile Change Time	5 – 15 minutes	5 – 15 minutes
Temperature Control
Accuracy of Temperature Controller	+ .1°C	+ .1°C
Cross-Belt Temperature Tolerance	+ 2.0°C	+ 2.0°C
Heater Wattage Per Zone	5400 w***	5400 w***
Temperature Range Standard	60-350°C	60-350°C
High Temperature Up to 450°C	O	O
Cooling Systems
Number of Cooling Zones Standard	1	1
Additional Cooling Zones	0	0
Water Cooling	–	1
Notes: S = Standard, O = Optional. * A 12″ (30 cm) Conveyor extension is an available option Need some SPL design * 380V heater wattage 4400 W Specifications continue on reverse. A continuous program of product improvement may result in changes to specification and performance. The right is reserved to institute these improvements without notice or liability.
