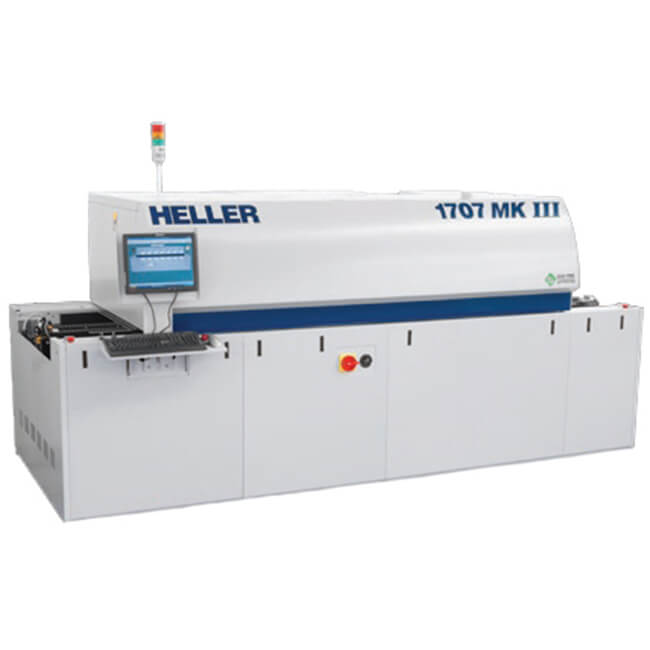

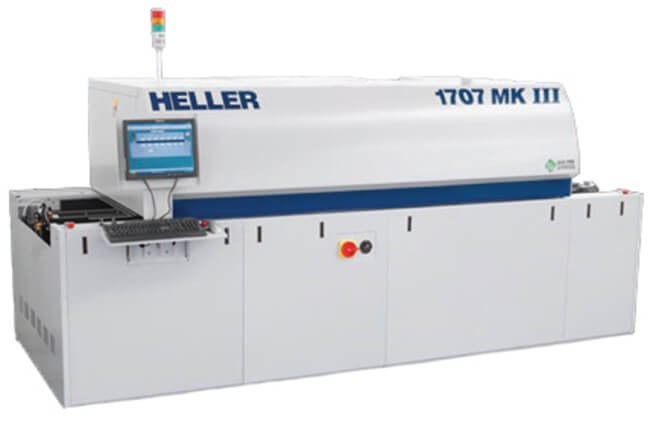

HELLER 1707 MK III Solder Reflow Oven
Model:1707 MKIII
Power Input(3 Phase)Standard:208/240 volts
Breaker Size:100 amps @208v
KW:7-14 Continuous
Typical Run Current:30-35 amps @208v
Optional Power Inputs Available:208/240/380/400/415 VAC 50/60 Hz
Overall Oven Dimensions:"134""(340cm)L x56""(142cm)W x63”(160cm)H"
Typical Net Weight:3550 lbs. (1610 kg)
Typical Shipping Weight:4400lbs. (1990 kg)
Typical Shipping Dimension:146”x73”x81”
Height From Floor:35.5"±2.0"(90 cm±5 cm)
"Maximum PCB Width:18“(56 cm)/22”(56cm)**
Clearance Above &Below Conveyor Pins:1.15"(2.9 cm)
Length of PCB Support Pins:187"(4.75 mm)
Minimum/Maximum Board Width:"2.0""-18""(5-46 cm) 22”(56cm)optional"
Accuracy of Temperature Controller:±.1℃
Cross-Belt Temperature Tolerance:±2.0℃
Heater Wattage Per Zone:6000 w**
Temperature Range Standard:60-350℃
Efficient Technology Co.,Ltd provide a full SMT assembly line solutions, including SMT Production Line, SMT Pick and place machine, SMT Stencil Printer, SMT Inspection equipment, SMT Weling equipment, SMT Intelligent Storage System, SMT Automatic Insertion Machine, SMT Peripheral Equipment, SMT Feeders, SMT Nozzles, SMT Spare Parts etc any kind SMT machines you may need, please contact us for more information: WeChat: +8613714564591 Email: sales@efsmt.com
FAQ:
Q: What we can do for you?
A: One-stop SMT Solution Supplier; Reliable SMT Partner.
Q.What is your MOQ requirement for the machine?
A. 1 set moq requirement for the machine.
Q. This is the first i use this kind of machine, is it easy to operate?
A: Provide free training，There are also English manuals or instructional videos to show you how to use the machine.
Q: If the machine has any problem after we receive it, how can we do?
A: Our engineer will help to solve it first, and free parts send to you in machine warranty period.
Q: Do you provide any warranty for the machine?
A: Yes 1 year warranty will be provided for the machine.
Q: What is your payment terms?
A: 30% deposit in advance and 70% balance before shipment.
