Heller 1505 MK5 Small Footprint SMT Solder Reflow Oven

BASIC INFO

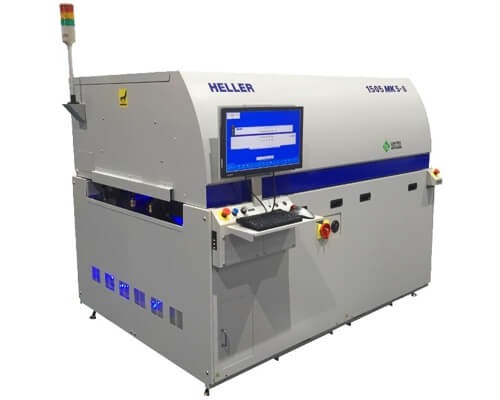

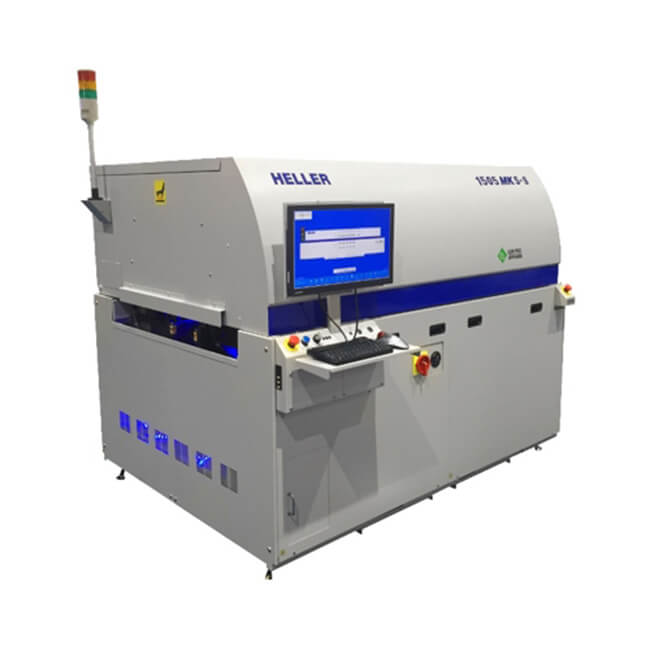

Heller 1505 MK5 Small Footprint SMT Solder Reflow Oven

-With its features increases productivity, improves quality and reduces costs:

- Small footprint - overall length (200 cm) is similar size to benchtop machines but is IN-LINE for maximum throughput!

- 5 heated zones -allows for more precise profile definition than lab machines. Profiles can be sculpted for minimal liquid time of reflow.

- Full convection heating top and bottom – gives the lowest ΔT across your PCB.

- 20 inch max PCB width – the model 1505 can process the largest PCBs of any system in its class.

- The 1505 can produce profiles similar to larger mass.

Specifications:

Dimensions: 200 x 137 x 160 cm

Number of heating zones: 5 Top, 5 Bottom

Number of cooling zones: 1

Heated length: 132 cm

Min/Max Board width:50-610 mm

Maximum conveyor speed: 188 cm/min

Temperature range: 60-350 °C

Accuracy of Temperature Controller: ±0,1 °C

Typical power consumptions: 7 - 14 kW

HELLER Reflow Dven 1505MK5 Specifications
Electric Suply
Power Input (3 Phase)Standard			24D,38D,48D volts
Dimensions
Dverall Dven Dimensions			79”(2DDcm)L x B0“(152cm)W×63”(1Dcm)H
Computer Control
lntel Based Lomputer			S
Flat Screen Mnnitor w/Mount			S
Windows Dperating System			Windows ID Home
Auto Start Sftware			S
Password Protection			S
Additional Features
KIC Profiling Saftware			S
Signal Light Tower			S
Powered Hood Lift			S
KIC Profiler			1
Mesh Belt Conveyor
Pracess Llearance Above Mesh Belt			2.3”(5.8 cm)
Canveyor Directin Left to Right			S
Edge Hold Canveyor System Dption
Height frm Floor-Standard			38.6"+2.4"(98cm+Bcm)
Clearane Above B Below Lonveyor Pins			1.15”(2.5 cm)
Length of PCB Suppart Pins			187”(4.75mm)
Minimum/Maximum Board Width			2"-20"(5-50 cm)
Power Width Adjustment			S
Forced Convection Zones
Top B Bottom			5
Heater Type			Instant response open c□il
Temperature Contral
Temperature Range Standard			BD-350C
Cooling Systems
Number of Laoling Znes Standard			I
