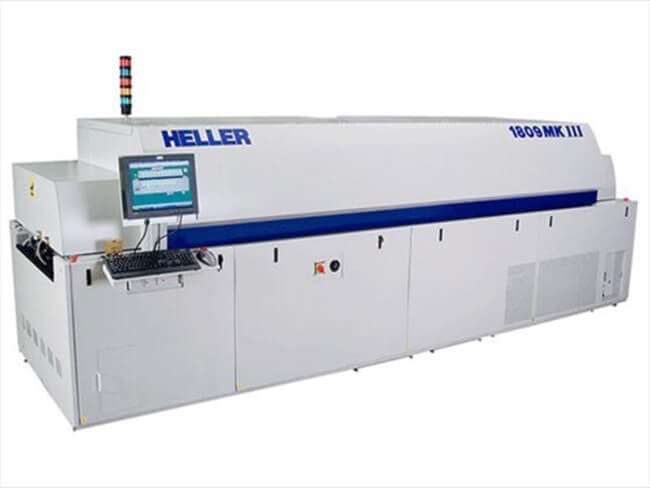

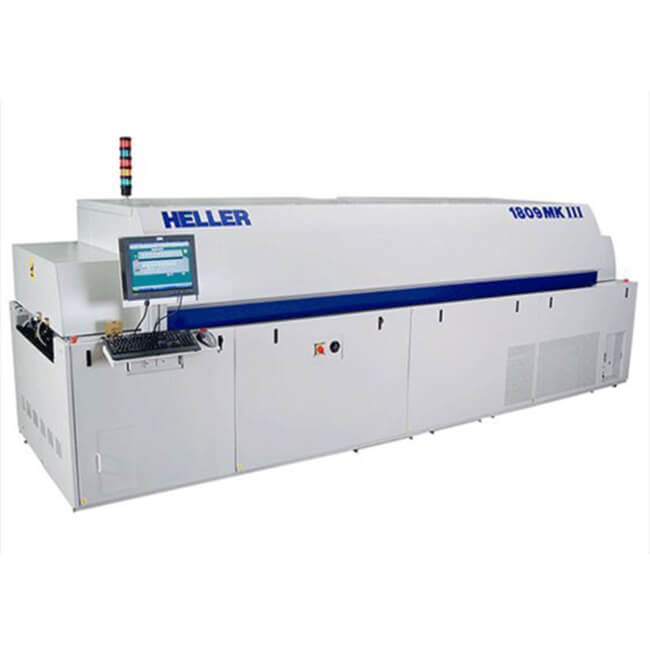

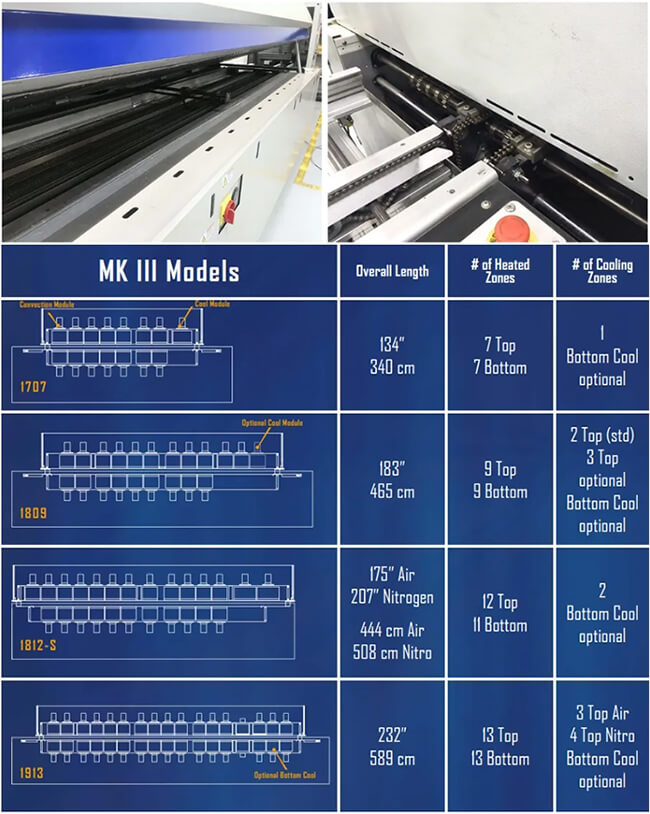

HELLER 1809 MK III SMT Solder Reflow Oven

9 heating zones (top and bottom, forced convection)
Cool Zones：2 Top
Heating tunnel length: 105 cm (254 cm)
Large PCB width: 20 cm (50.8 cm)

BASIC INFO

HELLER 1809 MK III SMT Solder Reflow Oven

- In the case of limited plant space, the 1800 model can meet the requirements of multiple varieties and high production capacity, and the chain speed can reach 32 inches (80 cm) per minute, regardless of the air or nitrogen environment, regardless of the distribution density of the components and whether it is empty or full , Fast response time and precise temperature control ensure process consistency and consistent temperature profile.

- Output capacity and strict process control

- Effective heat conduction comes from the heating module with high capacity and high wind speed. Its response speed of less than 1 second and temperature control accuracy of less than 0.1 degrees Celsius produce effective heat conduction, so the integrity of the temperature curve under heavy load is ensured

- The wide process window adapts to a variety of curve requirements-a variety of different products can use the same temperature setting

Advanced 5-channel thermocouple temperature curve production and process parameter recording capabilities, storing more than 500 programs and 500 temperature curves.

- Equipped with a high-capacity 26-inch wide heater module, the 1809MarkIII system reflow oven has good flexibility for different products. The size of the board can be up to 20 inches, and it is equipped with EHC and mesh belt at the same time.

Heller Industries Model 1809 MKIII
	1809MKIII (Air)	1809MKIII (Nitrogen)
Electric Supply
Power Input (3 Phase) Standard	480 volts	480 volts
Breaker Size	100 amps @ 480v	100 amps @ 480v
kW	7.5 - 16 Continuous	7.5 - 16 Continuous
Typical Run Current	30 - 35 amps @ 480v	30 - 35 amps @ 480v
Optional Power Inputs Available	208/240/380/400/415 VAC	208/240/380/400/415 VAC
Frequency	50/60 Hz	50/60 Hz
Sequential Zone Turn On	S	S
Dimensions
Overall Oven Dimensions	183" (465cm) L x 56” (142cm) W x63” (160cm)	183" (465cm) L x 56” (142cm) W x 63” (160cm) H
Typical Net Weight	4350 lbs. (1970 kg)	4550 lbs. (2060 kg)
Typical Shipping Weight	5500 lbs. (2490 kg)	5850 lbs. (2650 kg)
Typical Shipping Dimension	195” x 73” x 81”	495 x 185 x 205 cm
Computer Control
AMD or Intel Based Computer	S	S
Flat Screen Monitor w/Mount	S	S
Windows Operating System	Windows 8® Home Premium	Windows 8® Home Premium
Auto Start Software	S	S
Data Logging	S	S
Password Protection	S	S
LAN Networking	O	O
Inert Atmosphere
Minimum PPM Oxygen	-	10-25 PPM*
Waterless Cooling w/ Flux Separation System	-	O
Nitrogen On/Off Valve	-	O
Oxygen Monitoring System	-	O
Nitrogen Standby System	-	O
Typical Nitrogen Consumption	-	500 - 700 SCFH **
Additional Features
KIC Profiling Software	S	S
Signal Light Tower	S	S
Powered Hood Lift	S	S
Five (5)Thermocouple Profiling	S	S
Redundant Alarm Sensors	O	O
Intelligent Exhaust System	O	O
KIC Profiler / ECD Profiler	O	O
Center Board Support	O	O
Board Drop Sensor	O	O
Board Counter	O	O
Bar Code Reader	O	O
Custom Paint & Decal	O	O
Battery Backup for Conveyor and PC	O	O
GEM/SECS Interfacing	O	O
May require additional hardware to achieve these levels * Varies with PPM, PCB size and oven configuration
Mesh Belt Conveyor
Height From Floor	35.5" + 2.0" (90 cm + 5 cm)	35.5" + 2.0" (90 cm + 5 cm)
Maximum PCB Width **Requires wider heat module	18" (46 cm) / 22” (56cm)	18" (46 cm) 22” (56 cm)**
Space Required Between PCB's	0.0" (0.0 cm)	0.0" (0.0 cm)
Conveyor Length On-Load	18" (46 cm) *	3" (7.5 cm) *
Conveyor Length Off-Load	18" (46 cm) *	3" (7.5 cm) *
Heated Tunnel Length	105" (254 cm)	105" (254 cm)
Process Clearance Above Mesh Belt	2.3" (5.8 cm)	2.3" (5.8 cm)
Mesh Belt Pitch	0.5" (1.27 cm)	0.5" (1.27 cm)
Maximum Conveyor Speed	74"/Min (188 cm/min.)	74"/Min (188 cm/min.)
Conveyor Direction Left to Right	S	S
Conveyor Direction Right to Left	O	O
Conveyor Speed Control	Closed Loop	Closed Loop
Edge Hold Conveyor System Option
Height from Floor – Standard	37.0" + 2.0" (94 cm + 5 cm)	37.0" + 2.0" (94 cm + 5 cm)
Height from Floor – Optional	32.6" +3.9" / -.4" (83 cm + 10 cm / -1 cm)	32.6" +3.9" / -.4" (83 cm + 10 cm / -1 cm)
Clearance Above & Below Conveyor Pins	1.15" (2.9 cm)	1.15" (2.9 cm)
Length of PCB Support Pins	.187" (4.75 mm)	.187" (4.75 mm)
3 mm long support pins	O	O
Minimum/Maximum Board Width	2.0" – 18" (5 – 46 cm) 22” (56cm) optional	2.0" - 18" (5 –46 cm) 22” (56cm) optional
Power Width Adjustment	S	S
Computer Controlled Width Adjust	O	O
Auto Lubrication System	O	O
Forced Convection Zones
Top & Bottom	9	9
Heater Type	Instant response open coil	Instant response open coil
Heater Material	Nichrome	Nichrome
Profile Change Time	5 – 15 minutes	5 - 15 minutes
Temperature Control
Accuracy of Temperature Controller	+ .1。C	+ .1。C
Cross-Belt Temperature Tolerance	+ 2.0。C	+ 2.0。C
Heater Wattage Per Zone	6000 w**	6000 w**
Temperature Range Standard	60-350。C	60-350。C
High Temperature Up to 450。C	O	O
Cooling Systems
Number of Cooling Zones Standard	2	2
Additional Cooling Zones	O	O
Water Cooling	-	O
Notes: S = Standard, O = Optional. * A 12" (30 cm) Conveyor extension is an available option ** 380Vheater wattage 4800 Specifications continue on reverse.
A continuous program of product improvement may result in changes to specification and performance. The right is reserved to institute these improvements without notice or liability. January 2016
