PARMI Xceed SMT 3D AOI

Simultaneous 2D and 3D inspection
Laser sensor head with contrasted technology
High speed / High accuracy / No vibration
Easy maintenance and operation

BASIC INFO

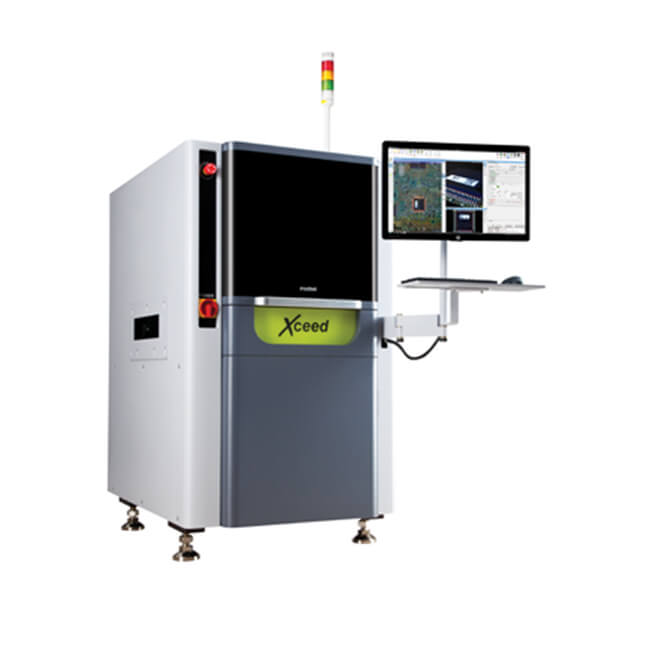

PARMI Xceed SMT 3D AOI Machine

PARMI Xceed is a cutting-edge 3D automatic optical inspection (AOI) equipment designed for electronic manufacturing quality control. It integrates 2D/3D hybrid inspection technology with a high-speed TRSC-1 sensor head, achieving an inspection speed of 65cm²/sec and supporting PCBs up to 40mm in component height. With user-friendly Veriworks software, real-time defect analysis, and seamless network connectivity, it efficiently detects missing components, misalignment, solder defects, and foreign materials, while ensuring high accuracy even for warped PCBs (±5mm).

Feature

1.Dual 2D/3D Inspection: Combines laser line scan and RGB LED lighting to eliminate shadows, detecting foreign materials, solder balls, and all common component defects without complex teaching.

2.High Speed & Accuracy: Equipped with a fast CMOS camera and telecentric lens, it completes inspection for 260×200mm PCBs in 10 seconds (including loading/unloading) with precise measurements.

3.User-Friendly Operation: Offers one-click component teaching, no-Gerber-data programming, and customizable UI, enabling 95%+ non-adjusted ratio and efficient setup within 70 minutes.

4.Comprehensive Process Adaptability: Supports warpage tracking (±5mm), barcode/badmark recognition, press fit inspection, and wave soldering defect detection.

5.Smart Connectivity & SPC: Integrates xNet network for remote monitoring (PC/mobile), SPC data analysis, and unified management of AOI/SPI systems.
