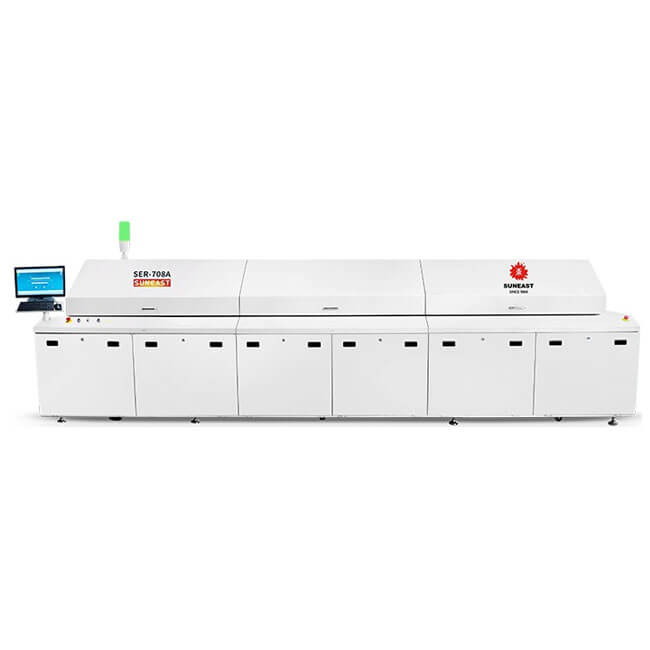

SUNEAST SER-708NH SMT Reflow Soldering Machine
Modular structure， easy to clean and maintain；
Stable and reliable anti-deformation structure design， manual+electric width adjustment；
Front and rear air return design， effectively prevent the influence of air flow between the zones， ensure accurate temperature control；
Full nitrogen filing is optional， multi-directional protection product welding quality；
Can be equipped with a nitrogen closed-loop control system to achieve low nitrogen consumption and low-cost production.
Product Details
●High heat energy：professional heat energy supply theoretical basis，through matching the appropriate heating power and volume to ensure large heat energy supply.Sufficient thermal energy to generate optimal thermal efficiency， maximize the productivity in short heating zones.
●Low energy consumption：theoretical design and practical testing， through customer verification， obtain the best repeatability results CPK value，get the lowest energy consumption in the factory site.
●Thermal equalization：theoretical and practical verification， ensure to achieve the minimum heat absorption difference between small and large components with the same speed， the same temperature setting，achieve the best equilibrium.
●Large size：can handle larger size PCB in the same size machine； double tracks machine can produce PCBwith300mminwid that the sametime， and PCBwith550mmin width wiht singletrack setting， which can meet the demand of many customers.
SER series rel low oven main speci lica lions
Model No
SER-708NH
Heating System
Heating Zone
8 Heating Zones，16 Heating moudules
Heating Length
2950mm
Cooling Type
Double cooling:enforced air cooling/water cooling (Optional:three cooling zones)
Outlet Exhaust Demand,Valume
2-Φ145， Exhaust demand 15m³/minx 2
Conveyor System
Product Width
min50mm-max400mm
Conveying Direction
L→R，R→L
inlet Height
900+20mm
Fixed Rail Side
Front rail Fixed(Option：Rear Rail Fixed)
Conveyor Type
Chain+mesh belt synchronous transmission
Cmponent Height
Clearance based on the rail：above 30mm， below 20mm
Conveying Speed
300mm-1500mm/min
Control System
Power Supply
AC3Φ，5W,380V,50/60HZ
Total Power
57KW
Start up Power
30KW
Running Power
7.5KW
Temperature Range
Room temp to 320℃
Control Type
PC+PLC Control System
Rail Width Adjusting Mode
Electric+Manual
Temp Control accuracy
±1℃
PCB Temp Deviation
±1℃
Data Storage
Process Data and status stotage
Power Outage Protection
Equipped with UPS
Operation Interface
Windows Chinese simplified， English online free switching
General
Dimension（L×W×H)
5055*1372*1515
Weight
2000-2200kg
Color
Bright wrinkled white
Efficient Technology Co.,Ltd provide a full SMT assembly line solutions, including SMT Production Line, SMT Pick and place machine, SMT Stencil Printer, SMT Inspection equipment, SMT Weling equipment, SMT Intelligent Storage System, SMT Automatic Insertion Machine, SMT Peripheral Equipment, SMT Feeders, SMT Nozzles, SMT Spare Parts etc any kind SMT machines you may need, please contact us for more information: WeChat: +8613714564591 Email: sales@efsmt.com
FAQ:
Q: What we can do for you?
A: One-stop SMT Solution Supplier; Reliable SMT Partner.
Q.What is your MOQ requirement for the machine?
A. 1 set moq requirement for the machine.
Q. This is the first i use this kind of machine, is it easy to operate?
A: Provide free training，There are also English manuals or instructional videos to show you how to use the machine.
Q: If the machine has any problem after we receive it, how can we do?
A: Our engineer will help to solve it first, and free parts send to you in machine warranty period.
Q: Do you provide any warranty for the machine?
A: Yes 1 year warranty will be provided for the machine.
Q: What is your payment terms?
A: 30% deposit in advance and 70% balance before shipment.
