SUNEAST SER-710AH SMT Reflow Oven
Modular structure， easy to clean and maintain；
Stable and reliable anti-deformation structure design， manual+electric width adjustment；
Front and rear air return design， effectively prevent the influence of air flow between the zones， ensure accurate temperature control；
Full nitrogen filing is optional， multi-directional protection product welding quality；
Can be equipped with a nitrogen closed-loop control system to achieve low nitrogen consumption and low-cost production.
Product Details

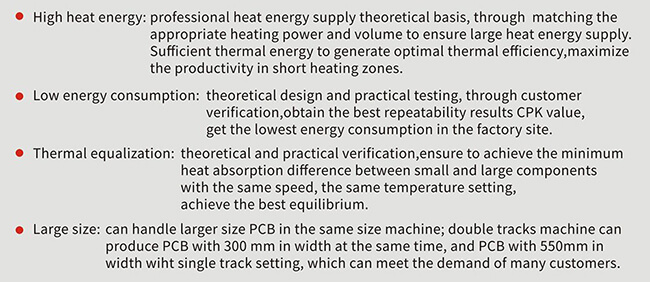

●High heat energy：professional heat energy supply theoretical basis，through matching the appropriate heating power and volume to ensure large heat energy supply.Sufficient thermal energy to generate optimal thermal efficiency， maximize the productivity in short heating zones.
●Low energy consumption：theoretical design and practical testing， through customer verification， obtain the best repeatability results CPK value，get the lowest energy consumption in the factory site.
●Thermal equalization：theoretical and practical verification， ensure to achieve the minimum heat absorption difference between small and large components with the same speed， the same temperature setting，achieve the best equilibrium.
●Large size：can handle larger size PCB in the same size machine； double tracks machine can produce PCBwith300mminwid that the sametime， and PCBwith550mmin width wiht singletrack setting， which can meet the demand of many customers.
| SER series rel low oven main speci lica lions | |
| Model No | SER-710AH |
| Heating System | |
| Heating Zone | 10 Heating Zones，20 Heating moudules |
| Heating Length | 3670mm |
| Cooling Type | Double cooling:enforced air cooling/water cooling (Optional:three cooling zones) |
| Outlet Exhaust Demand,Valume | 2-Φ145， Exhaust demand 15m³/minx 2 |
| Conveyor System | |
| Product Width | min50mm-max400mm |
| Conveying Direction | L→R，R→L |
| inlet Height | 900+20mm |
| Fixed Rail Side | Front rail Fixed(Option：Rear Rail Fixed) |
| Conveyor Type | Chain+mesh belt synchronous transmission |
| Cmponent Height | Clearance based on the rail：above 30mm， below 20mm |
| Conveying Speed | 300mm-1500mm/min |
| Control System | |
| Power Supply | AC3Φ，5W,380V,50/60HZ |
| Total Power | 71KW |
| Start up Power | 35KW |
| Running Power | 9.5KW |
| Temperature Range | Room temp to 320℃ |
| Control Type | PC+PLC Control System |
| Rail Width Adjusting Mode | Electric+Manual |
| Temp Control accuracy | ±1℃ |
| PCB Temp Deviation | ±1℃ |
| Data Storage | Process Data and status stotage |
| Power Outage Protection | Equipped with UPS |
| Operation Interface | Windows Chinese simplified， English online free switching |
| General | |
| Dimension（L×W×H) | 5775*1372*1515 |
| Weight | 2400-2600kg |
| Color | Bright wrinkled white |
Efficient Technology Co.,Ltd provide a full SMT assembly line solutions, including SMT Production Line, SMT Pick and place machine, SMT Stencil Printer, SMT Inspection equipment, SMT Weling equipment, SMT Intelligent Storage System, SMT Automatic Insertion Machine, SMT Peripheral Equipment, SMT Feeders, SMT Nozzles, SMT Spare Parts etc any kind SMT machines you may need, please contact us for more information: WeChat: +8613714564591 Email: sales@efsmt.com
FAQ:
Q: What we can do for you?
A: One-stop SMT Solution Supplier; Reliable SMT Partner.
Q.What is your MOQ requirement for the machine?
A. 1 set moq requirement for the machine.
Q. This is the first i use this kind of machine, is it easy to operate?
A: Provide free training，There are also English manuals or instructional videos to show you how to use the machine.
Q: If the machine has any problem after we receive it, how can we do?
A: Our engineer will help to solve it first, and free parts send to you in machine warranty period.
Q: Do you provide any warranty for the machine?
A: Yes 1 year warranty will be provided for the machine.
Q: What is your payment terms?
A: 30% deposit in advance and 70% balance before shipment.
