Axxon Mycronic MYC50E inline THT bonding machine

X-Y repeatability：±25um@3σ
X-Y acceleration：0.8 g peak
X-Y velocity：800 mm/s peak
V-300HP single valve and single lane(XxY)：600x430/490x320(with tilt &rotate)

BASIC INFO

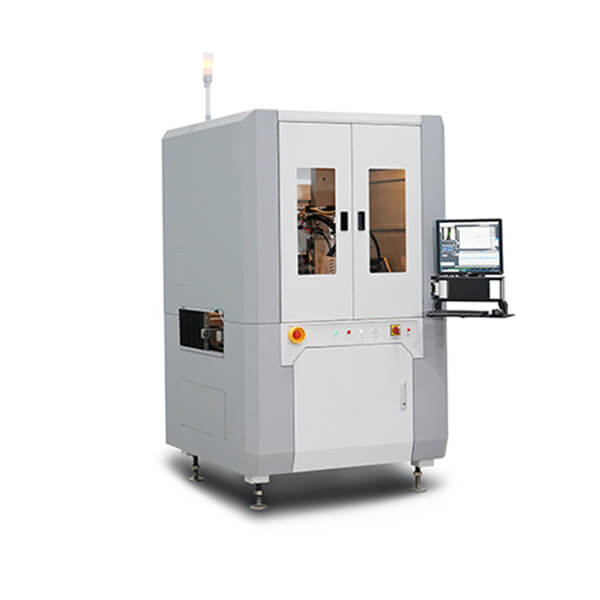

Axxon Mycronic MYC50E inline THT bonding machine

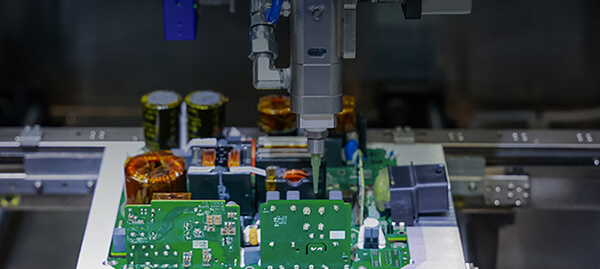

Based on the MYC50 platform, the MYSmart MYC50E is an industrial dispensing system specially developed for THT bonding applications that require a motorized tilt and rotation functionality.

Product Features

• Fast and stable operation

• Flexible multi-axis control for complex processes

• Seamless integration of an external feeding system

• Extended hood for neat hose routing with counterbalances

• Coupling of a robust and versatile high-pressure valve

• Micrometer precision fine adjustment

• Needle verification module eliminates the need for needle change

• Precision electronic scale module to monitor and maintain process repeatability

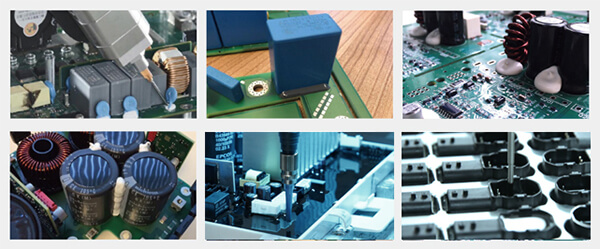

In order to better protect these components better protect these components, single or dual component materials can be dispensed between THT components, or in the collar of these components and the PCB board.

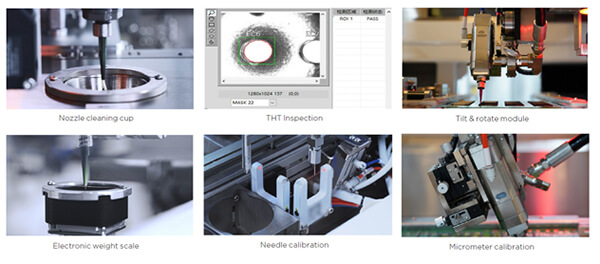

In order to efficiently implement complex process applications, the MYC50E is designed with a variety of process function modules.

Specifications

MOTION SYSTEM	MYC50E
Z-axis repeatability	±25um@3σ
X-Y repeatability	±25um@3σ
X-Y acceleration	0.8 g peak
X-Y velocity	800 mm/s peak
Z travel	100mm
Drive system	AC servo motor with precise ball screw
DISPENSING AREA
V-300HP single valve and single lane(XxY)	600x430/490x320(with tilt &rotate)
V-9000H single valve and single lane(XxY)	600x420/400x280(with tilt &rotate)
BOARD HANDLING
Max. top clearance	100 mm
Max. bottom clearance	100 mm
Load capacity	5kg, 10kg(optional)
FACILITIES REQUIREMENTS
System footprint MYC50E（WxDxH）	1,290x1,364x2,120mm (without light tower)
VISION AND LIGHTING
Camera resolution	1.3M pixels
Field of view	14.0 x 11.0 mm
Lighting	Ring Light or Red/Green/White LEDs
